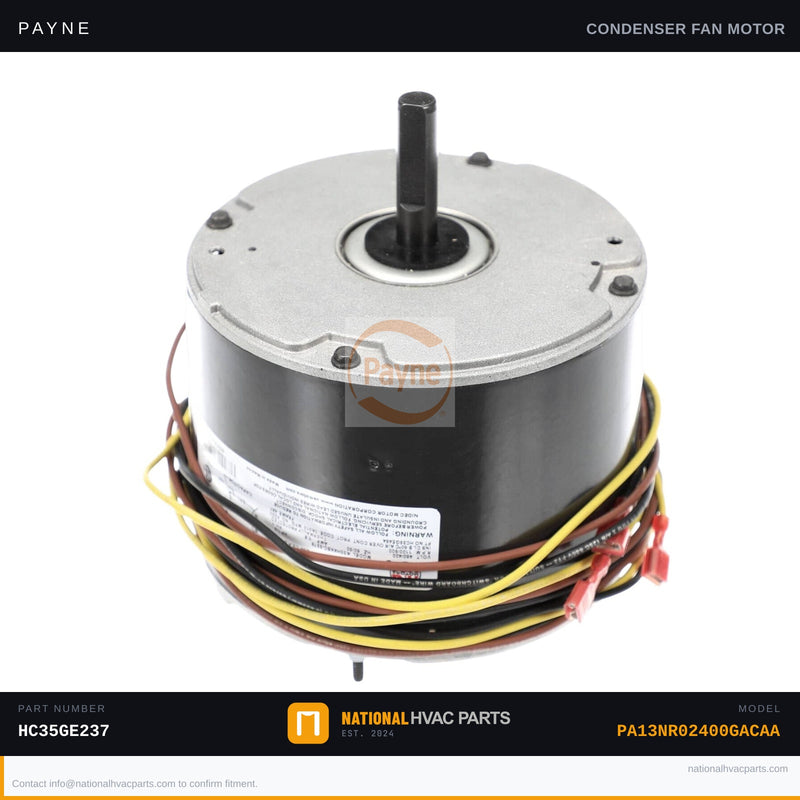

OEM Payne Condenser Fan Motor 1/4 HP for PA13NR02400GACAA
Payne

OEM Payne Condenser Fan Motor 1/4 HP for PA13NR02400GACAA

SKU: PAYNE-PA13NR02400GACAA-FAN_MOTOR-HC35GE237 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

OEM Payne Condenser Fan Motor for Model PA13NR02400GACAA

This OEM condenser fan motor is the factory-specified replacement for the Payne PA13NR02400GACAA split-system air conditioner. The condenser fan motor drives the outdoor unit's fan blade, pulling air across the condenser coil to reject heat from the refrigerant. When this motor fails, the outdoor unit runs without airflow, causing rapid high-pressure lockout, compressor overheating, and a complete loss of cooling. Common failure symptoms include a humming outdoor unit with a stationary fan blade, intermittent cooling followed by shutdown, or a visibly seized or wobbling fan.

  • Specs: Replaces OEM part numbers HC35GE237 and HC38GE231 | 1/4 HP | 208-230V single-phase | Factory-matched RPM, rotation direction, and 1/2" shaft diameter | Permanently lubricated sleeve bearings rated for outdoor use
  • OEM vs Generic: OEM motors are wound and balanced to exact factory tolerances, ensuring correct airflow CFM and amp draw. Aftermarket motors frequently vary in rotation direction, shaft length, or RPM, risking compressor damage and voided warranties.
  • Install Difficulty: 3/5 — Disconnect power and discharge capacitor before beginning. Tools needed: 1/4" and 5/16" nut drivers, wire stripper, multimeter, and blade puller for fan hub removal. Photograph all wiring connections and confirm rotation direction before final startup. Torque fan blade set screw to spec to prevent vibration.
  • Warranty: 1-year OEM factory warranty against defects. Orders placed before 3 PM ship same business day from our climate-controlled warehouse.

Compatibility: Designed specifically for the Payne PA13NR02400GACAA 2-ton, 13 SEER single-stage R-22 split-system condenser. Always verify HP, voltage, RPM, and shaft diameter against your unit's data plate before ordering. Cross-references OEM part numbers HC35GE237 and HC38GE231. Our fitment team is available to confirm compatibility before you buy — no guesswork, no returns.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Fan Motor fit my Payne PA13NR02400GACAA?
Yes. This is the factory-specified OEM fan motor for the Payne PA13NR02400GACAA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the fan motor on my Payne PA13NR02400GACAA?
Difficulty: Medium-Hard (1–2 hrs)
Step 1: Turn off breaker. Step 2: Note motor specs: HP, RPM, voltage, rotation direction. Step 3: Remove old motor from mounting. Step 4: Transfer fan blade to new motor. Step 5: Mount new motor, reconnect wiring. Step 6: Restore power, verify rotation direction.
My AC fan isn’t spinning. What part do I need?
Fan not spinning, spinning slowly, or making grinding/squealing noises = motor failure. Grinding = bearings failed. Squealing = bearings dry. No spin + hum = check the motor capacitor first before replacing the entire motor.
Is this fan motor compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne fan motor?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
How fast does National HVAC Parts ship?
Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
