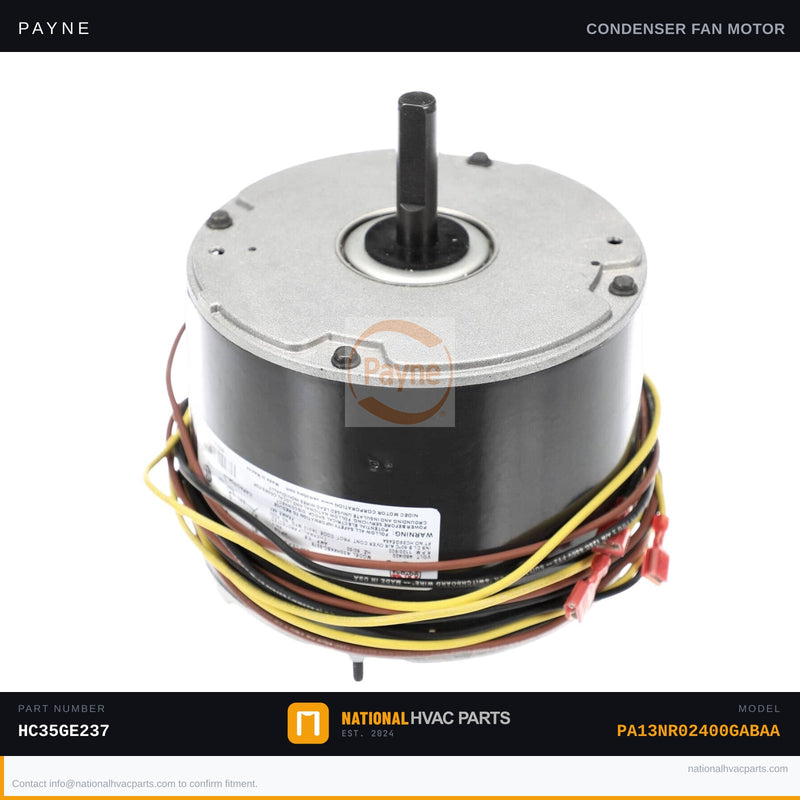

OEM Payne Condenser Fan Motor 1/4 HP for PA13NR02400GABAA
Payne

OEM Payne Condenser Fan Motor 1/4 HP for PA13NR02400GABAA

SKU: PAYNE-PA13NR02400GABAA-FAN_MOTOR-HC35GE237 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

OEM Payne Condenser Fan Motor for Model PA13NR02400GABAA

This OEM condenser fan motor is the factory-specified replacement for the Payne PA13NR02400GABAA split-system air conditioner. The condenser fan motor drives the outdoor fan blade to pull air across the condenser coil, rejecting heat from the refrigerant. When this motor fails, the condenser coil overheats, triggering high-pressure lockout — leaving you with a system that short-cycles, trips the breaker, or simply won't cool. Common failure symptoms include a humming outdoor unit with a stationary fan blade, intermittent cooling loss on hot days, or a visibly seized motor shaft. Replaces OEM part numbers HC35GE237 and HC38GE231.

  • Specs: 1/4 HP | 208–230V single-phase | 1,075 RPM | Permanent split capacitor (PSC) design | 48-frame | 1/2" shaft diameter | Factory-matched rotation direction and mounting configuration for direct drop-in fit
  • OEM vs Generic: OEM motors are wound to exact factory tolerances for amperage draw, rotation speed, and thermal protection thresholds. Generic motors frequently run outside spec, causing premature compressor wear, nuisance trips, and voided equipment warranties.
  • Install difficulty: 3/5 — Discharge and lock out power before beginning. Tools needed: 1/4" and 5/16" nut drivers, wire stripper, multimeter, and blade puller (recommended). Photograph all wiring and blade pitch orientation before disassembly. Capacitor must be discharged prior to motor lead disconnection.
  • Warranty: 1-year OEM factory warranty against defects in materials and workmanship. Orders placed before 3 PM local time ship same business day from our climate-controlled warehouse.

Compatibility: Engineered as a direct OEM replacement for Payne PA13NR02400GABAA 2-ton, 13 SEER R-410A split-system condensers. Always cross-reference the motor data plate (HP, voltage, RPM, and rotation) against your unit's wiring diagram before ordering. Our fitment specialists are available to verify compatibility — contact us before you buy for peace of mind.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Fan Motor fit my Payne PA13NR02400GABAA?
Yes. This is the factory-specified OEM fan motor for the Payne PA13NR02400GABAA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the fan motor on my Payne PA13NR02400GABAA?
Difficulty: Medium-Hard (1–2 hrs)
Step 1: Turn off breaker. Step 2: Note motor specs: HP, RPM, voltage, rotation direction. Step 3: Remove old motor from mounting. Step 4: Transfer fan blade to new motor. Step 5: Mount new motor, reconnect wiring. Step 6: Restore power, verify rotation direction.
My AC fan isn’t spinning. What part do I need?
Fan not spinning, spinning slowly, or making grinding/squealing noises = motor failure. Grinding = bearings failed. Squealing = bearings dry. No spin + hum = check the motor capacitor first before replacing the entire motor.
Is this fan motor compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne fan motor?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
How fast does National HVAC Parts ship?
Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
