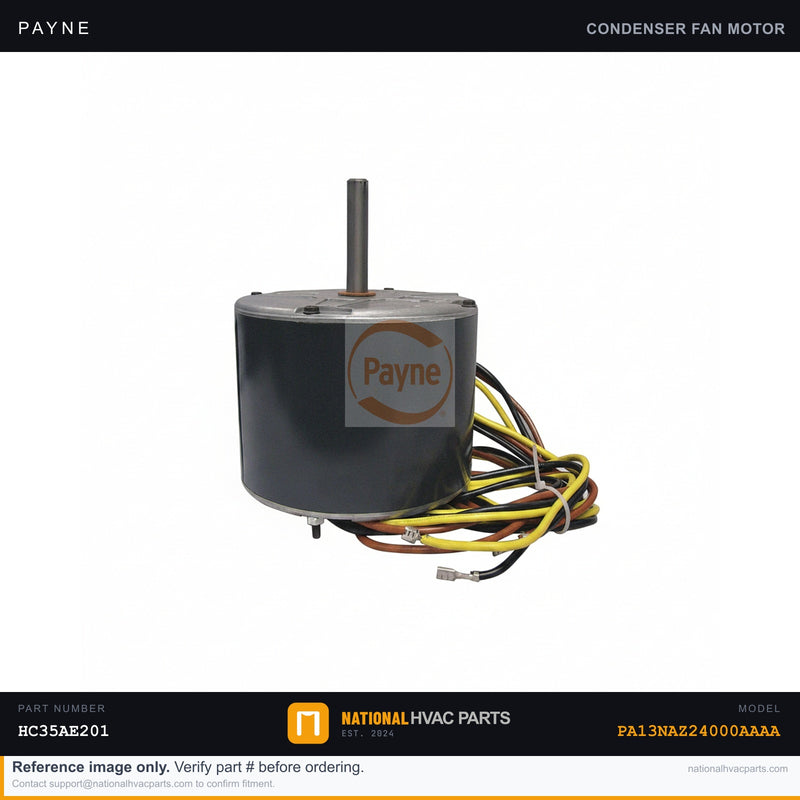

OEM Payne Condenser Fan Motor 1/4-1/2 HP for PA13NAZ24000AAAA
Payne

OEM Payne Condenser Fan Motor 1/4-1/2 HP for PA13NAZ24000AAAA

SKU: PAYNE-PA13NAZ24000AAAA-FAN_MOTOR-HC35AE201 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

OEM Payne Condenser Fan Motor for Model PA13NAZ24000AAAA

This OEM condenser fan motor is the factory-specified replacement for the Payne PA13NAZ24000AAAA split-system air conditioner. The condenser fan motor drives the outdoor unit's fan blade, pulling air across the condenser coil to reject heat from the refrigerant. When this motor fails, the compressor overheats and triggers high-pressure cutoff, leaving you with a system that runs briefly then shuts down — or won't start at all. Common failure signs include a humming outdoor unit with a stationary fan blade, visible motor shaft seizure, or a burning smell from the condenser cabinet.

  • Specs: OEM Part Numbers HC35AE201 / HC36AR231 | 1/4–1/2 HP range | Factory-matched RPM, rotation direction, and shaft diameter for the PA13NAZ24000AAAA condenser | 208–230V single-phase | Permanently lubricated bearings | Replaces both listed OEM part numbers
  • OEM vs Generic: OEM motors are wound to exact factory specifications for correct CFM airflow and amp draw. Generic motors frequently deviate in RPM and rotation, risking compressor overload, premature bearing failure, and voided equipment warranties.
  • Install difficulty: 3/5 — Disconnect power at the breaker and confirm zero voltage with a multimeter before opening the cabinet. Tools needed: 1/4" and 5/16" nut drivers, adjustable wrench, needle-nose pliers, and a multimeter. Photograph all wiring connections and note fan blade pitch orientation before removal. Ensure blade is re-mounted at the same depth on the new motor shaft.
  • Warranty: 1-year OEM factory warranty against defects in materials and workmanship. Ships same business day from our climate-controlled warehouse.

Compatibility: Designed for the Payne PA13NAZ24000AAAA 2-ton 13 SEER split-system condenser. Always verify HP, voltage, RPM, and shaft diameter against your unit's data plate before ordering. Cross-references OEM part numbers HC35AE201 and HC36AR231. Need fitment confirmation? Our HVAC parts specialists verify compatibility before your order ships — contact us today and get your system back up and running fast.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Fan Motor fit my Payne PA13NAZ24000AAAA?
Yes. This is the factory-specified OEM fan motor for the Payne PA13NAZ24000AAAA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the fan motor on my Payne PA13NAZ24000AAAA?
Difficulty: Medium-Hard (1–2 hrs)
Step 1: Turn off breaker. Step 2: Note motor specs: HP, RPM, voltage, rotation direction. Step 3: Remove old motor from mounting. Step 4: Transfer fan blade to new motor. Step 5: Mount new motor, reconnect wiring. Step 6: Restore power, verify rotation direction.
My AC fan isn’t spinning. What part do I need?
Fan not spinning, spinning slowly, or making grinding/squealing noises = motor failure. Grinding = bearings failed. Squealing = bearings dry. No spin + hum = check the motor capacitor first before replacing the entire motor.
Is this fan motor compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne fan motor?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
How fast does National HVAC Parts ship?
Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
