OEM Payne Condenser Fan Motor 1/4-1/2HP for PA13NA0600NGAEAA
Payne

OEM Payne Condenser Fan Motor 1/4-1/2HP for PA13NA0600NGAEAA

SKU: PAYNE-PA13NA0600NGAEAA-FAN_MOTOR-HB39GQ230 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

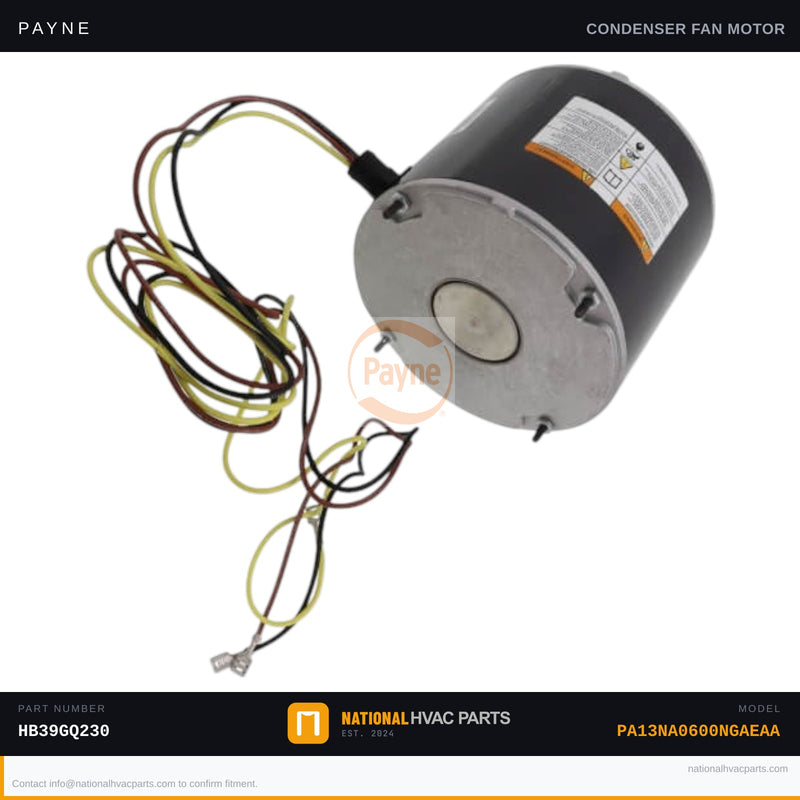

OEM Payne Condenser Fan Motor for Model PA13NA0600NGAEAA

This is the factory OEM replacement condenser fan motor (part number HB39GQ230) for the Payne PA13NA0600NGAEAA split-system air conditioner. The condenser fan motor drives the outdoor unit's fan blade, pulling air across the condenser coil to dissipate heat from the refrigerant. When this motor fails, the compressor overheats, the system trips on high-pressure lockout, or the outdoor unit runs with no airflow — causing costly compressor damage if left unaddressed.

  • Specs: OEM part number HB39GQ230 | Rated for 1/4–1/2 HP condenser fan applications | Factory-matched RPM, rotation direction, and shaft diameter for the PA13NA0600NGAEAA outdoor unit | 200–230V single-phase operation
  • OEM vs Generic: This OEM motor is wound and balanced to exact factory tolerances for noise, airflow, and thermal protection. Aftermarket motors often differ in rotation direction, shaft length, or RPM, leading to reduced efficiency, premature bearing failure, or voided equipment warranties.
  • Install difficulty: 3/5 — Disconnect power at the disconnect box and capacitor before beginning. Tools needed: 1/4" and 5/16" nut drivers, wire stripper, multimeter, blade or fan-puller tool. Photograph all wiring connections and note blade pitch/orientation before removal. Ensure the replacement capacitor MFD matches if reusing the existing run capacitor.
  • Warranty: 1-year OEM factory warranty against defects. In-stock units ship the same business day from our warehouse.

Compatibility: Designed specifically for the Payne PA13NA0600NGAEAA 5-ton, 13 SEER single-stage split-system condenser. Always verify HP, voltage, RPM, and shaft diameter on your existing motor's data label before ordering. Our parts specialists are available to confirm fitment — just reach out before you order. Order today and your part ships same business day.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Fan Motor fit my Payne PA13NA0600NGAEAA?
Yes. This is the factory-specified OEM fan motor for the Payne PA13NA0600NGAEAA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the fan motor on my Payne PA13NA0600NGAEAA?
Difficulty: Medium-Hard (1–2 hrs)
Step 1: Turn off breaker. Step 2: Note motor specs: HP, RPM, voltage, rotation direction. Step 3: Remove old motor from mounting. Step 4: Transfer fan blade to new motor. Step 5: Mount new motor, reconnect wiring. Step 6: Restore power, verify rotation direction.
My AC fan isn’t spinning. What part do I need?
Fan not spinning, spinning slowly, or making grinding/squealing noises = motor failure. Grinding = bearings failed. Squealing = bearings dry. No spin + hum = check the motor capacitor first before replacing the entire motor.
Is this fan motor compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne fan motor?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
