OEM Payne Condenser Fan Motor 1/4-1/2 HP for PA13NA048000ADAA
Payne

OEM Payne Condenser Fan Motor 1/4-1/2 HP for PA13NA048000ADAA

SKU: PAYNE-PA13NA048000ADAA-FAN_MOTOR-HC39GE226 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

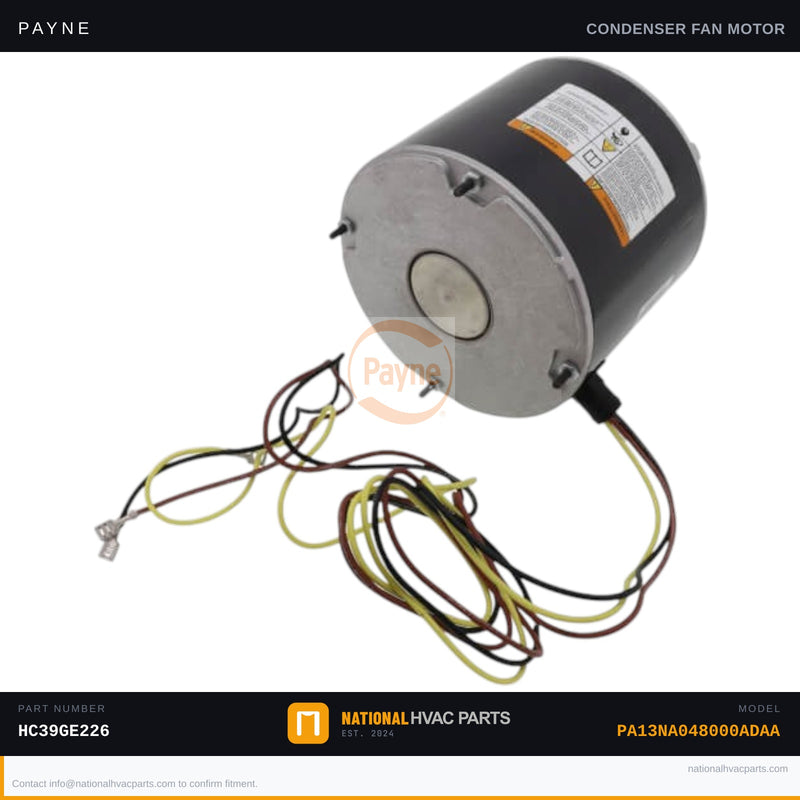

OEM Payne Condenser Fan Motor HC39GE226 for Model PA13NA048000ADAA

This is the factory-specified OEM condenser fan motor (part number HC39GE226) for the Payne PA13NA048000ADAA split-system air conditioner. The condenser fan motor drives the outdoor unit's fan blade, pulling air across the condenser coil to reject heat and keep the refrigerant circuit operating efficiently. When this motor fails, the compressor overheats and trips on thermal overload — leaving you with warm air, short-cycling, or a completely locked-out system. Listen for grinding, squealing, or a humming outdoor unit with a stationary fan blade as early warning signs.

  • Specs: OEM Part HC39GE226 | Rated for 4-ton (048) capacity class | Factory-matched HP, RPM, rotation direction, and 1/2" shaft diameter — verify your unit's data plate before ordering
  • OEM vs Generic: This is a genuine OEM motor wound to exact factory tolerances for current draw, RPM, and thermal protection. Aftermarket motors often deviate in rotation direction or shaft length, causing blade clearance issues and premature bearing failure.
  • Install Difficulty: 3/5 — Requires disconnecting power at the disconnect box and verifying the capacitor before installation. Tools needed: 1/4" and 5/16" nut drivers, wire stripper, multimeter, and blade puller (recommended). Always confirm rotation direction and capacitor MFD rating match before energizing.
  • Warranty: 1-year OEM factory warranty. In-stock and ships same business day from our warehouse.

Compatibility: Designed as a direct OEM replacement for Payne model PA13NA048000ADAA 4-ton single-stage R-410A split-system condensers. Cross-reference part number HC39GE226 against your unit's wiring diagram and data plate to confirm HP, voltage, and capacitor requirements before installation. Need fitment help? Our HVAC parts specialists verify compatibility before you order — call or chat today.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Fan Motor fit my Payne PA13NA048000ADAA?
Yes. This is the factory-specified OEM fan motor for the Payne PA13NA048000ADAA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the fan motor on my Payne PA13NA048000ADAA?
Difficulty: Medium-Hard (1–2 hrs)
Step 1: Turn off breaker. Step 2: Note motor specs: HP, RPM, voltage, rotation direction. Step 3: Remove old motor from mounting. Step 4: Transfer fan blade to new motor. Step 5: Mount new motor, reconnect wiring. Step 6: Restore power, verify rotation direction.
My AC fan isn’t spinning. What part do I need?
Fan not spinning, spinning slowly, or making grinding/squealing noises = motor failure. Grinding = bearings failed. Squealing = bearings dry. No spin + hum = check the motor capacitor first before replacing the entire motor.
Is this fan motor compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne fan motor?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
