OEM Payne Condenser Fan Motor 1/4 HP 208-230V for PA13NA042000ACAA
Payne

OEM Payne Condenser Fan Motor 1/4 HP 208-230V for PA13NA042000ACAA

SKU: PAYNE-PA13NA042000ACAA-FAN_MOTOR-HC37GE219 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

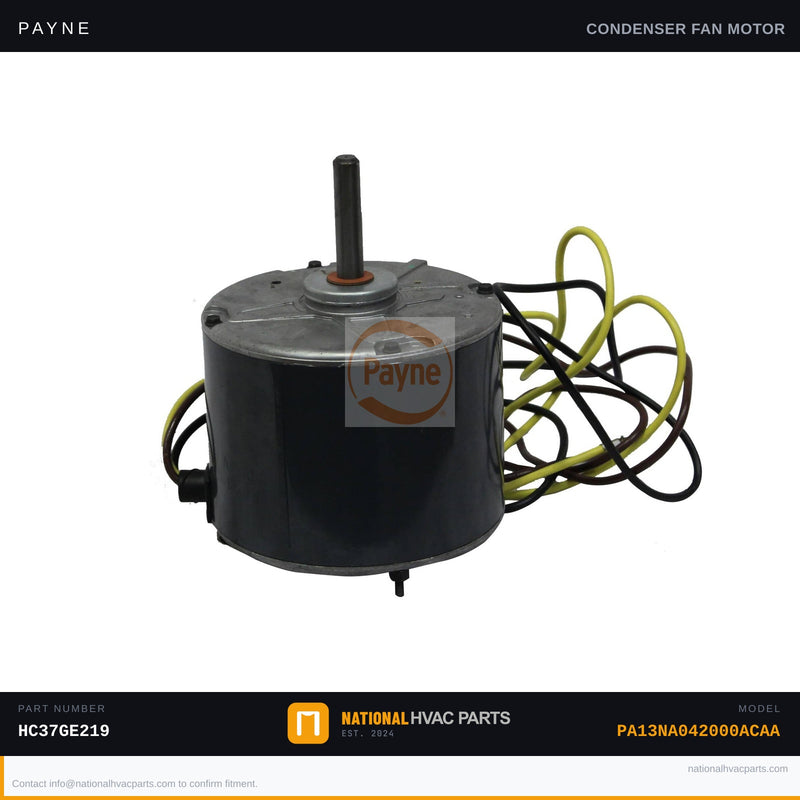

OEM Payne Condenser Fan Motor HC37GE219 for Model PA13NA042000ACAA

This OEM condenser fan motor (part number HC37GE219) is the factory-specified replacement for the Payne PA13NA042000ACAA split-system air conditioner. The condenser fan motor drives the outdoor fan blade, pulling air across the condenser coil to dissipate heat from the refrigerant. When this motor fails, the system will overheat, trigger high-pressure lockout, or the compressor will shut down entirely — leaving you with no cooling. Common symptoms include the outdoor fan not spinning, the unit running briefly before shutting off, or the fan blade turning sluggishly.

  • Specs: 1/4 HP | 208-230V | Single-phase | Permanent Split Capacitor (PSC) design | Factory-matched RPM and rotation direction for the PA13NA042000ACAA platform
  • OEM vs Generic: This OEM motor is wound and balanced to exact factory specifications, ensuring correct airflow across the condenser coil. Generic motors frequently ship with incorrect RPM ratings or wrong shaft diameters, leading to premature failure and potential compressor damage from inadequate heat rejection.
  • Install difficulty: 3/5 — Disconnect power at the disconnect box and verify voltage is absent before proceeding. Tools needed: 1/4" and 5/16" nut drivers, wire stripper, multimeter, and a blade puller for safe fan blade removal. Photograph all wiring and note blade pitch orientation before disassembly. Reuse the run capacitor only if tested within spec.
  • Warranty: 1-year OEM factory warranty against defects. Orders placed before 3 PM ship same business day from our warehouse.

Compatibility: Designed specifically for the Payne PA13NA042000ACAA 3.5-ton single-stage R-410A split-system condenser. Always verify horsepower, voltage, RPM, rotation direction, and shaft diameter against your unit's data plate and existing motor before ordering. Our fitment specialists are available to confirm compatibility before you buy — no guesswork required.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Fan Motor fit my Payne PA13NA042000ACAA?
Yes. This is the factory-specified OEM fan motor for the Payne PA13NA042000ACAA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the fan motor on my Payne PA13NA042000ACAA?
Difficulty: Medium-Hard (1–2 hrs)
Step 1: Turn off breaker. Step 2: Note motor specs: HP, RPM, voltage, rotation direction. Step 3: Remove old motor from mounting. Step 4: Transfer fan blade to new motor. Step 5: Mount new motor, reconnect wiring. Step 6: Restore power, verify rotation direction.
My AC fan isn’t spinning. What part do I need?
Fan not spinning, spinning slowly, or making grinding/squealing noises = motor failure. Grinding = bearings failed. Squealing = bearings dry. No spin + hum = check the motor capacitor first before replacing the entire motor.
Is this fan motor compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne fan motor?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
How fast does National HVAC Parts ship?
Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
