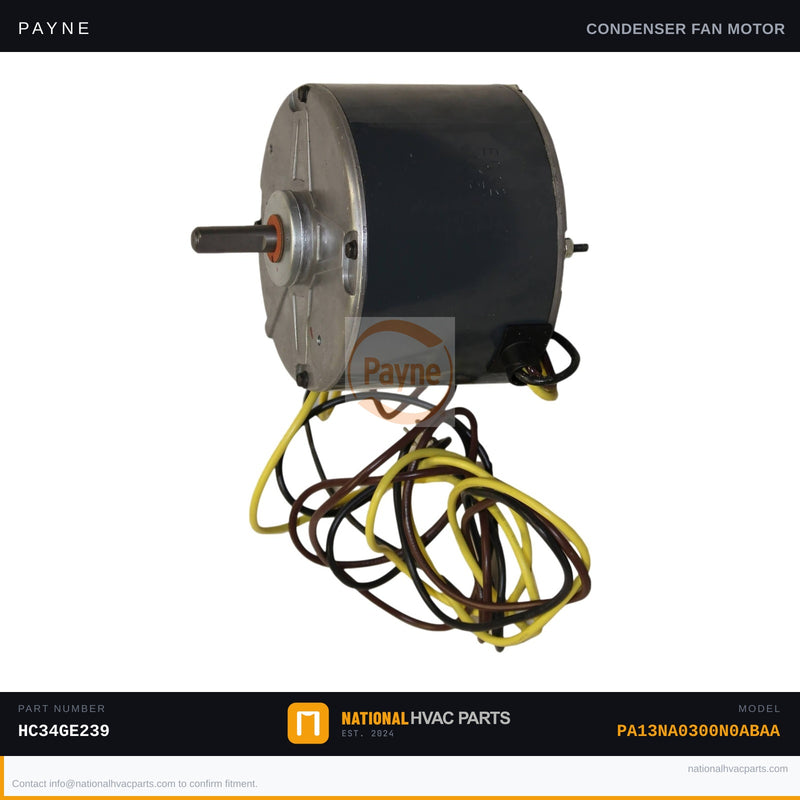

OEM Payne Condenser Fan Motor for Model PA13NA0300N0ABAA

This is the factory-specified OEM condenser fan motor for the Payne PA13NA0300N0ABAA single-stage split-system air conditioner. The condenser fan motor drives the outdoor fan blade, pulling air across the condenser coil to reject heat from the refrigerant. When this motor fails, the condenser coil overheats, triggering high-pressure lockout or compressor cutoff — leaving you with a system that starts briefly then shuts down, or won't cool at all. Replaces OEM part numbers HC34GE239 and HB33GQ230.

• Specs: 1/4 HP | 208-230V single-phase | 1075 RPM | Permanently split capacitor (PSC) | 48-frame | Shaft diameter 1/2" | Factory-matched rotation and mounting pattern for PA13NA0300N0ABAA
• OEM vs Generic: OEM motors are wound to exact factory torque curves and thermal protection specs. Generic motors frequently use lower-grade bearings and off-tolerance windings, leading to premature failure — especially in high-ambient summer conditions where thermal margin is critical.
• Install difficulty: 3/5 — Disconnect and lock out power before beginning. Tools needed: 1/4" and 5/16" nut drivers, adjustable wrench, multimeter, blade pitch gauge. Photograph blade orientation and wiring before disassembly. Transfer existing fan blade to the new motor shaft; verify blade pitch and tighten set screw to spec. Capacitor is typically shared with compressor — test before reassembly.
• Warranty: 1-year OEM factory warranty against defects in materials and workmanship. Orders ship same business day from our stocked warehouse.

Compatibility: Engineered as a direct OEM replacement for Payne PA13NA0300N0ABAA 3-ton R-410A split-system condensers. Always verify horsepower, voltage, RPM, and shaft diameter against your unit's data plate before ordering. Our parts team is available to confirm fitment — order with confidence and get back up and running fast.
