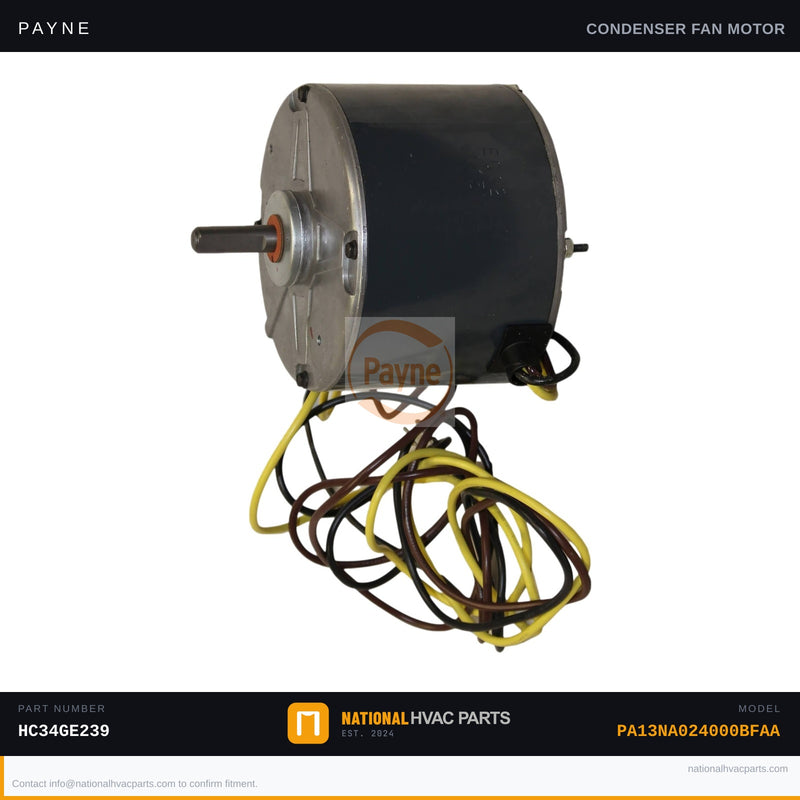

OEM Payne Condenser Fan Motor 1/4 HP for PA13NA024000BFAA
Payne

OEM Payne Condenser Fan Motor 1/4 HP for PA13NA024000BFAA

SKU: PAYNE-PA13NA024000BFAA-FAN_MOTOR-HC34GE239 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

OEM Payne Condenser Fan Motor for Model PA13NA024000BFAA

This is the factory-specified OEM condenser fan motor for the Payne PA13NA024000BFAA single-stage split-system air conditioner. The condenser fan motor drives the outdoor fan blade, pulling air across the condenser coil to reject heat from the refrigerant. When this motor fails, the compressor overheats and the system either short-cycles on high-pressure lockout or shuts down entirely — leaving you with warm air or no cooling at all. OEM part numbers HC34GE239 and HB33GQ230 are both factory-matched replacements for this model.

  • Specs: 1/4 HP | 208-230V single-phase | 1,075 RPM | Permanent Split Capacitor (PSC) | Sleeve or ball bearing | Reversible rotation | 48-frame | Factory-matched for PA13NA024000BFAA
  • OEM vs Generic: OEM motors are wound to exact factory amperage and rotation specs. Aftermarket motors frequently carry wider tolerance ranges, risking improper airflow, compressor strain, and voided equipment warranties.
  • Install difficulty: 3/5 — Disconnect power and discharge the run capacitor before beginning. Tools needed: 1/4" and 5/16" nut drivers, adjustable wrench, multimeter, and blade puller. Note rotation direction and wire colors before removal. Verify shaft diameter matches your fan blade hub.
  • Warranty: 1-year OEM factory warranty against defects. Orders placed before cutoff ship the same business day from our stocked warehouse.

Compatibility: Engineered specifically for the Payne PA13NA024000BFAA 2-ton R-410A split-system condenser. Always confirm horsepower, voltage, RPM, and shaft diameter against your unit's data plate before ordering. Our fitment team is available to verify compatibility — reach out before you buy for peace of mind.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Fan Motor fit my Payne PA13NA024000BFAA?
Yes. This is the factory-specified OEM fan motor for the Payne PA13NA024000BFAA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the fan motor on my Payne PA13NA024000BFAA?
Difficulty: Medium-Hard (1–2 hrs)
Step 1: Turn off breaker. Step 2: Note motor specs: HP, RPM, voltage, rotation direction. Step 3: Remove old motor from mounting. Step 4: Transfer fan blade to new motor. Step 5: Mount new motor, reconnect wiring. Step 6: Restore power, verify rotation direction.
My AC fan isn’t spinning. What part do I need?
Fan not spinning, spinning slowly, or making grinding/squealing noises = motor failure. Grinding = bearings failed. Squealing = bearings dry. No spin + hum = check the motor capacitor first before replacing the entire motor.
Is this fan motor compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne fan motor?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
