OEM Payne Contactor 2-Pole 24V Coil for PA12NA060000ABAA
Payne

OEM Payne Contactor 2-Pole 24V Coil for PA12NA060000ABAA

SKU: PAYNE-PA12NA060000ABAA-CONTACTOR-HN52KD020 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

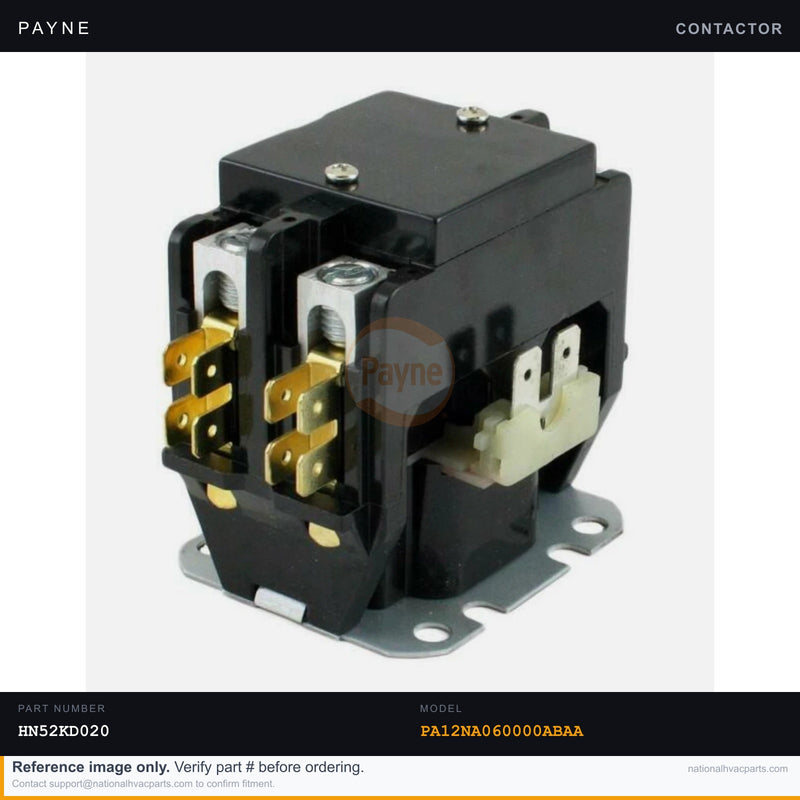

OEM Payne 2-Pole Contactor HN52KD020 for Model PA12NA060000ABAA

This OEM contactor (part number HN52KD020) is the factory-specified replacement for the Payne PA12NA060000ABAA split-system air conditioner. The contactor is a high-voltage relay that receives a 24V signal from the thermostat and closes the circuit to send 240V power to the compressor and condenser fan motor. When it fails — due to pitted or burned contacts, a stuck plunger, or a failed coil — the outdoor unit will not energize at all, or may run continuously without cycling off.

  • Specs: 2-pole configuration | 24V AC coil voltage | 30–40 amp contact rating | Direct OEM replacement — part number HN52KD020 | Factory-matched for Payne PA12NA060000ABAA 5-ton condensing units
  • OEM vs Generic: OEM contactors use silver-alloy contact tips rated for the exact load cycling of your system. Generic alternatives frequently use lower-grade contacts that pit faster, shortening service life and risking compressor damage from voltage drop.
  • Install difficulty: 2/5 — Turn off power at both the disconnect box and the breaker panel before beginning. Tools needed: flat-head and Phillips screwdrivers, 1/4" nut driver, needle-nose pliers, multimeter. Photograph all wiring before disconnecting terminals. Swap wires one at a time to avoid miswiring.
  • Warranty: 1-year OEM factory warranty. Ships same business day from our warehouse when ordered before 3 PM local time.

Compatibility: Designed specifically for the Payne PA12NA060000ABAA 5-ton single-stage R-410A split-system condenser. Always verify your existing contactor's pole count, coil voltage, and amperage rating against your unit's data plate before ordering. Have questions about fitment? Our HVAC parts specialists confirm compatibility before you buy — no guesswork.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Contactor fit my Payne PA12NA060000ABAA?
Yes. This is the factory-specified OEM contactor for the Payne PA12NA060000ABAA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the contactor on my Payne PA12NA060000ABAA?
Difficulty: Medium (30–45 min)
Step 1: Turn off breaker. Step 2: Open condensing unit panel. Step 3: Photograph ALL wiring on the contactor. Step 4: Label each wire with tape. Step 5: Disconnect wires and remove old contactor. Step 6: Mount new contactor, reconnect wires matching your photo. Step 7: Restore power and test.
My AC clicks but the compressor won’t turn on. What’s wrong?
Clicking from the outdoor unit without the compressor starting = worn contactor. The contactor sends power to the compressor. When its contacts are pitted, it clicks but can’t make solid contact. Look for: visible pitting/burn marks on the contactor face, intermittent operation, or buzzing.
Is this contactor compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne contactor?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
