OEM Payne Pressure Switch High/Low for PA12NA04200GAAAA
Payne

OEM Payne Pressure Switch High/Low for PA12NA04200GAAAA

SKU: PAYNE-PA12NA04200GAAAA-PRESSURE_SWITCH-HK02ZA395 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

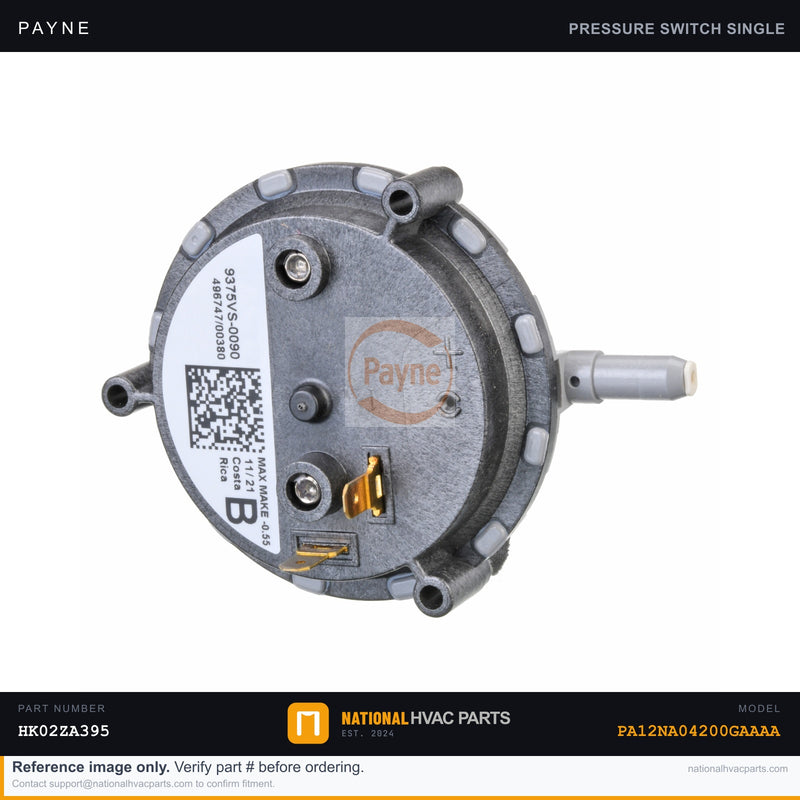

OEM Payne High & Low Pressure Switch for Model PA12NA04200GAAAA

These OEM pressure switches — HK02ZA395 (High Pressure Switch) and HK02ZB028 (Low Pressure Switch) — are the factory-specified replacements for the Payne PA12NA04200GAAAA heat pump system. Pressure switches monitor refrigerant pressure on both the high and low sides of the refrigerant circuit to protect the compressor from operating outside safe parameters. When either switch fails or trips, the system will lock out and refuse to start, protecting the compressor from catastrophic damage. Common symptoms include a unit that powers on but immediately shuts down, a blinking fault code indicating pressure fault, or a system that runs briefly before locking out.

  • Specs: HK02ZA395 — High Side Pressure Switch | HK02ZB028 — Low Side Pressure Switch | Factory-calibrated cutout setpoints | Direct OEM replacement with matched pressure ratings and SPST normally-open contacts | 24V control circuit compatible
  • OEM vs Generic: OEM pressure switches are factory-calibrated to exact cutout and reset pressures for the PA12NA04200GAAAA refrigerant circuit. Generic substitutes frequently carry wider pressure tolerances that can allow the compressor to operate in damaging conditions or nuisance-trip under normal operation.
  • Install difficulty: 3/5 — System must be fully powered down before servicing. Tools needed: 1/4" and 5/16" nut drivers, needle-nose pliers, multimeter for continuity verification. Refrigerant lines remain pressurized — do not disconnect refrigerant fittings; switches mount externally on the service port manifold. Photograph all wiring before disconnecting. EPA 608 certification required if refrigerant handling becomes necessary.
  • Warranty: 1-year OEM factory warranty on both HK02ZA395 and HK02ZB028. Orders placed before cutoff ship same business day from our stocked warehouse.

Compatibility: Engineered specifically for the Payne PA12NA04200GAAAA heat pump. Always cross-reference OEM part numbers HK02ZA395 and HK02ZB028 against your unit's wiring diagram and data plate before ordering. Our parts specialists are available to confirm fitment prior to purchase — same-day shipping available on all in-stock OEM pressure switches.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Pressure Switch fit my Payne PA12NA04200GAAAA?
Yes. This is the factory-specified OEM pressure switch for the Payne PA12NA04200GAAAA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the pressure switch on my Payne PA12NA04200GAAAA?
Difficulty: Medium (20–30 min)
Step 1: Turn off power. Step 2: Locate pressure switch near draft inducer. Step 3: Note tubing orientation. Step 4: Disconnect tubing and wires. Step 5: Remove screw, install new switch. Step 6: Reconnect tubing and wires, restore power.
My furnace shows a pressure switch error. What do I replace?
Furnace LED showing pressure switch error = switch not detecting draft inducer airflow. Try first: clear the rubber tubing to the switch (often clogged with condensation). If problem persists, replace the pressure switch.
Is this pressure switch compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne pressure switch?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
How fast does National HVAC Parts ship?
Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
