OEM Payne Pressure Switch HK02ZA395 / HK02ZB028 for PA12NA042000ACAA
Payne

OEM Payne Pressure Switch HK02ZA395 / HK02ZB028 for PA12NA042000ACAA

SKU: PAYNE-PA12NA042000ACAA-PRESSURE_SWITCH-HK02ZA395 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

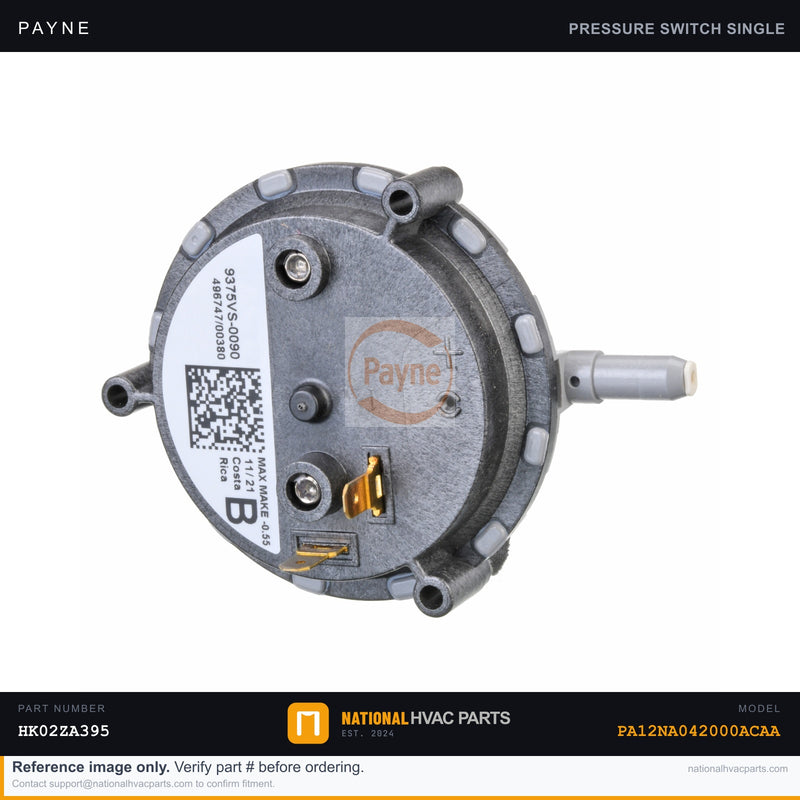

OEM Payne High & Low Pressure Switch HK02ZA395 / HK02ZB028 for Model PA12NA042000ACAA

This OEM pressure switch replacement kit includes both the high pressure switch (HK02ZA395) and low pressure switch (HK02ZB028) factory-specified for the Payne PA12NA042000ACAA split-system heat pump. Pressure switches prove that the system has achieved correct refrigerant pressure before allowing the control board to proceed through the operating sequence. When either switch fails — or trips on a fault — the unit will lock out, display a fault code, or refuse to run entirely. Common symptoms include the system short-cycling, failing to reach the heating or cooling stage, or throwing a continuous pressure fault on the thermostat or board.

  • Specs: High Pressure Switch — OEM Part HK02ZA395 | Low Pressure Switch — OEM Part HK02ZB028 | Factory-calibrated trip points matched to R-410A refrigerant pressures | 1/4" Spade terminals | Designed for Payne PA12NA series heat pump applications
  • OEM vs Generic: OEM pressure switches are factory-calibrated to exact trip-point specifications for the PA12NA042000ACAA refrigerant circuit. Generic aftermarket switches often carry wider tolerance bands, risking nuisance trips or — more critically — failure to trip when a true over-pressure event occurs, which can damage the compressor.
  • Install Difficulty: 3/5 — Refrigerant system work should only be performed by an EPA 608-certified technician. For the switch swap itself: de-energize and lock out the unit, recover refrigerant pressure per local code, and disconnect the 1/4" spade wiring. Tools needed: flathead screwdriver, needle-nose pliers, refrigerant manifold gauge set, and a multimeter to confirm continuity on the replacement switch before reassembly.
  • Warranty: 1-year OEM factory warranty. In-stock and ships same business day from our warehouse.

Compatibility: This listing covers both OEM pressure switches for the Payne PA12NA042000ACAA heat pump. Always verify your existing switch part numbers printed on the switch body or your unit's wiring diagram before ordering — the high and low switches are not interchangeable. Need help confirming fitment? Our HVAC parts specialists verify compatibility before you buy.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Pressure Switch fit my Payne PA12NA042000ACAA?
Yes. This is the factory-specified OEM pressure switch for the Payne PA12NA042000ACAA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the pressure switch on my Payne PA12NA042000ACAA?
Difficulty: Medium (20–30 min)
Step 1: Turn off power. Step 2: Locate pressure switch near draft inducer. Step 3: Note tubing orientation. Step 4: Disconnect tubing and wires. Step 5: Remove screw, install new switch. Step 6: Reconnect tubing and wires, restore power.
My furnace shows a pressure switch error. What do I replace?
Furnace LED showing pressure switch error = switch not detecting draft inducer airflow. Try first: clear the rubber tubing to the switch (often clogged with condensation). If problem persists, replace the pressure switch.
Is this pressure switch compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne pressure switch?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
