OEM Payne Dual Run & Start Capacitor Kit for PA12NA036000ABAA
Payne

OEM Payne Dual Run & Start Capacitor Kit for PA12NA036000ABAA

SKU: PAYNE-PA12NA036000ABAA-CAPACITOR-P291-5073RS Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

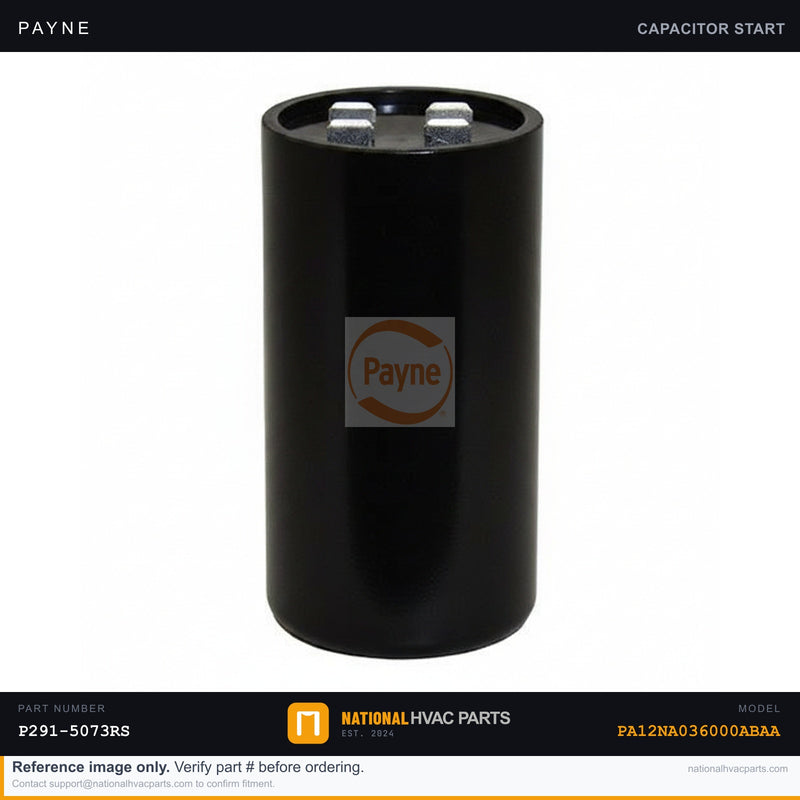

OEM Payne Dual Run & Start Capacitor for Model PA12NA036000ABAA

This OEM-matched capacitor set includes the dual run capacitor (P291-5073RS) and start capacitor (P281-8806) factory-specified for the Payne PA12NA036000ABAA split-system air conditioner. The dual run capacitor continuously powers both the compressor and condenser fan motor during operation, while the start capacitor delivers the extra torque burst needed to bring the compressor up to speed. When either fails, you'll notice symptoms such as a humming condenser with no motor movement, a unit that trips the breaker repeatedly, or a system that short-cycles within the first few minutes of operation — all common signs of capacitor failure on 3-ton Payne split systems.

  • Specs: Dual Run Capacitor (P291-5073RS) — Round case, 370V/440V rated, factory ±5% MFD tolerance | Start Capacitor (P281-8806) — High-capacitance boost, rated for R-410A compressor loads | Both matched to Payne PA12NA036000ABAA factory specifications
  • OEM vs Generic: OEM capacitors are manufactured to exact factory tolerances, ensuring proper voltage handling and MFD accuracy. Generic aftermarket units frequently ship with ±10% or wider MFD variance, which accelerates compressor wear, shortens motor life, and can void your system warranty.
  • Install Difficulty: 2/5 — Always discharge the capacitor fully before handling any terminals — stored charge can cause serious injury. Tools needed: 1/4" nut driver, insulated needle-nose pliers, multimeter with capacitance mode. Photograph all wiring connections before disconnecting. If you are unsure, consult a licensed HVAC technician.
  • Warranty & Shipping: Backed by a 1-year OEM factory warranty against defects. In stock and ships same business day from our climate-controlled warehouse. Orders placed before 3 PM local time qualify for same-day dispatch.

Compatibility: These capacitors are the factory-designated replacements for the Payne PA12NA036000ABAA 3-ton (36,000 BTU) single-stage R-410A split-system condenser. Always verify the MFD rating, voltage, and terminal configuration on your existing capacitor's data label before finalizing your order. Our parts specialists are available to confirm fitment — contact us before you order if you have any questions.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Capacitor fit my Payne PA12NA036000ABAA?
Yes. This is the factory-specified OEM capacitor for the Payne PA12NA036000ABAA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the capacitor on my Payne PA12NA036000ABAA?
Difficulty: Easy (20–30 min)
Step 1: Turn off power at breaker. Step 2: Open condensing unit panel. Step 3: Photograph the old capacitor wiring (Common/Herm/Fan). Step 4: Discharge old capacitor with insulated screwdriver. Step 5: Disconnect and remove old capacitor. Step 6: Mount new capacitor, reconnect wires to matching terminals. Step 7: Close panel, restore power, test. Tools: screwdriver, needle-nose pliers.
My AC hums but won’t start. What part do I need?
An AC that hums but won’t start is the classic symptom of a failed capacitor. The capacitor provides the electrical boost to start the compressor. When it fails, you hear humming but the motor can’t overcome inertia. Other symptoms: fan spinning slowly, AC cycling on/off rapidly, or a visibly swollen capacitor. Fix: replace capacitor ($15–$80 DIY, 30 min).
Is this capacitor compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne capacitor?
OEM strongly recommended. OEM capacitors have ±6% MFD tolerance vs aftermarket ±10%. The looser tolerance causes motor winding stress, higher temps, and shorter compressor life. Price difference is only $10–$20 — OEM is the clear value choice.
How fast does National HVAC Parts ship?
Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
