OEM Payne Pressure Switch High/Low for PA12NA030000ABAA
Payne

OEM Payne Pressure Switch High/Low for PA12NA030000ABAA

SKU: PAYNE-PA12NA030000ABAA-PRESSURE_SWITCH-HK02ZA395 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

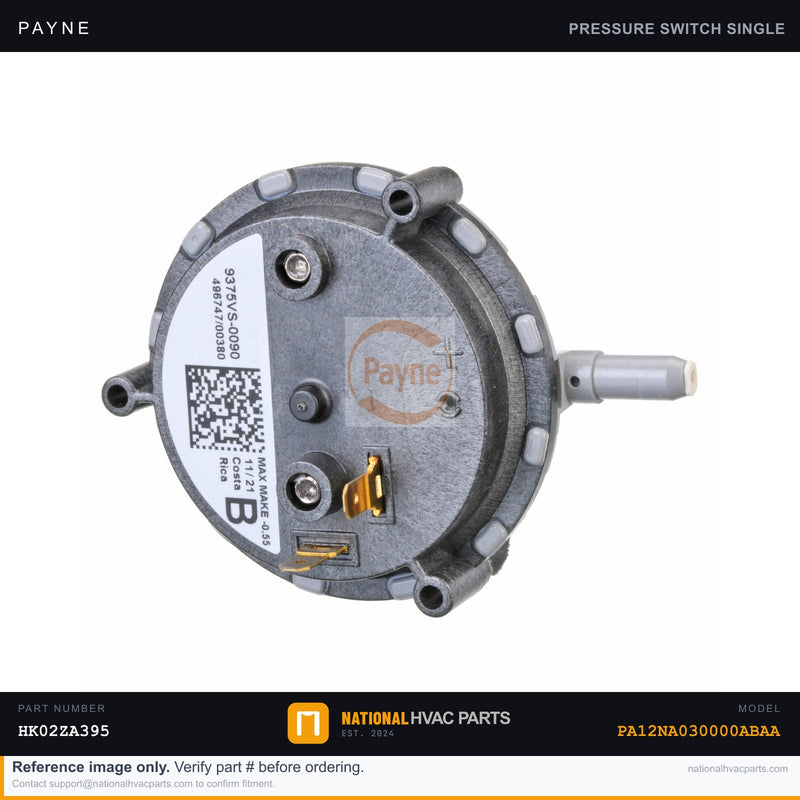

OEM Payne High & Low Pressure Switch for Model PA12NA030000ABAA

This OEM pressure switch kit covers both the high pressure switch (HK02ZA395) and low pressure switch (HK02ZB028) for the Payne PA12NA030000ABAA packaged gas/electric unit. The pressure switch is a critical safety component that monitors the inducer motor's negative pressure to confirm proper venting before allowing ignition to proceed. When either switch fails — whether stuck open or closed — the control board will not advance past the inducer stage, resulting in a no-heat lockout condition. Common symptoms include the inducer running continuously with no ignition attempt, a flashing fault code indicating a pressure switch error, or nuisance lockouts during cold-weather startup.

  • Specs: High Pressure Switch — OEM Part# HK02ZA395 | Low Pressure Switch — OEM Part# HK02ZB028 | Factory-calibrated W.C. (water column) set points | 1/4" Hose barb port | SPNO (normally open) configuration matched to Payne PA12NA030000ABAA factory specifications
  • OEM vs Generic: OEM pressure switches are calibrated to exact water-column ratings required by the PA12NA030000ABAA's inducer assembly. Generic switches frequently carry ±15% W.C. tolerance, which can trigger nuisance lockouts in cold weather or, worse, allow ignition under marginal venting conditions — a safety risk.
  • Install Difficulty: 2/5 — Disconnect power before servicing. Tools needed: 1/4" nut driver, flathead screwdriver, manometer (recommended to verify W.C. at switch port after replacement). Inspect the rubber hose connecting the inducer to the switch port for cracks or blockages before installing the new switch — a cracked hose is often the root cause of switch failure.
  • Warranty: 1-year OEM factory warranty. Orders placed by 3 PM ship same business day from our climate-controlled warehouse.

Compatibility: Engineered specifically for the Payne PA12NA030000ABAA packaged unit. Verify your existing part number (HK02ZA395 for high, HK02ZB028 for low) against your unit's wiring diagram or data label before ordering. Not sure which switch you need? Our HVAC parts specialists will confirm fitment at no charge — contact us before you order.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Pressure Switch fit my Payne PA12NA030000ABAA?
Yes. This is the factory-specified OEM pressure switch for the Payne PA12NA030000ABAA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the pressure switch on my Payne PA12NA030000ABAA?
Difficulty: Medium (20–30 min)
Step 1: Turn off power. Step 2: Locate pressure switch near draft inducer. Step 3: Note tubing orientation. Step 4: Disconnect tubing and wires. Step 5: Remove screw, install new switch. Step 6: Reconnect tubing and wires, restore power.
My furnace shows a pressure switch error. What do I replace?
Furnace LED showing pressure switch error = switch not detecting draft inducer airflow. Try first: clear the rubber tubing to the switch (often clogged with condensation). If problem persists, replace the pressure switch.
Is this pressure switch compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne pressure switch?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
