OEM Payne Dual Run & Start Capacitor Kit for PA12NA024000ABAA
Payne

OEM Payne Dual Run & Start Capacitor Kit for PA12NA024000ABAA

SKU: PAYNE-PA12NA024000ABAA-CAPACITOR-P291-4053RS Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

OEM Payne Dual Run & Start Capacitor for Model PA12NA024000ABAA

These OEM-matched capacitors — P291-4053RS (Dual Run) and P281-8806 (Start Capacitor) — are the factory-specified replacements for the Payne PA12NA024000ABAA split-system air conditioner. The dual run capacitor maintains the electrical charge needed to keep both the compressor and condenser fan motor running efficiently, while the start capacitor delivers the high-torque burst required to bring the compressor up to speed. When either fails, symptoms include a loud humming with no motor movement, a unit that trips the breaker repeatedly, or a system that starts briefly then shuts down within minutes of operation.

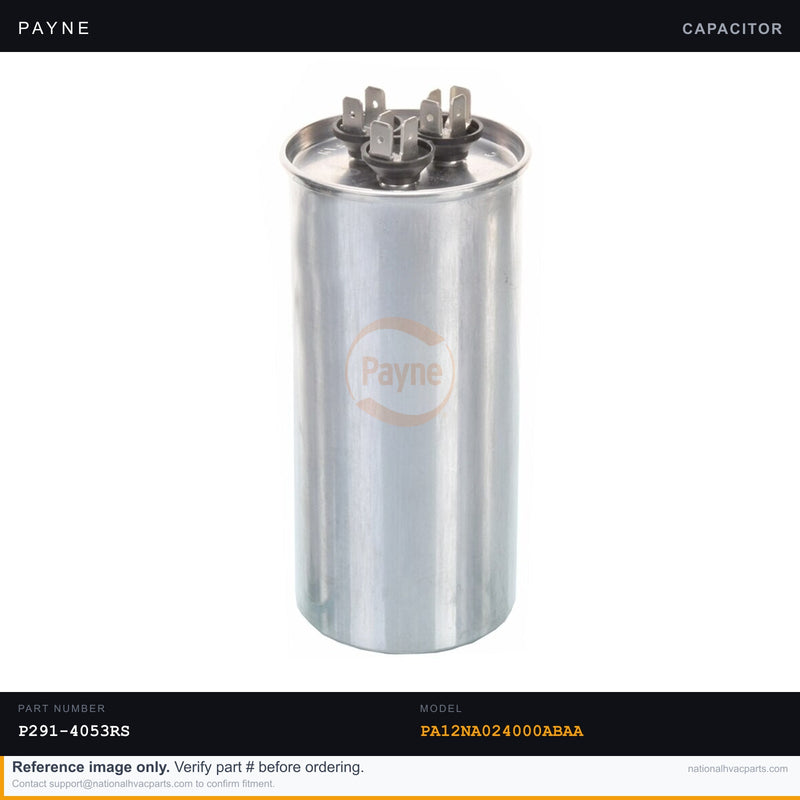

  • Specs — Dual Run (P291-4053RS): Multi-MFD round run capacitor | 370V/440V dual-rated | ±5% factory tolerance | Hermetically sealed for outdoor condenser use

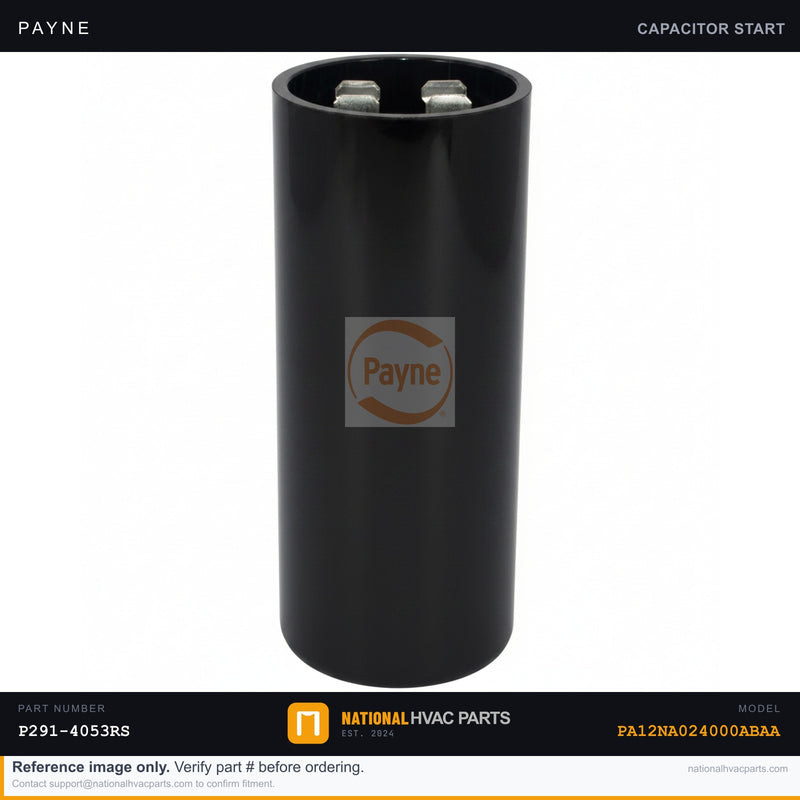

  • Specs — Start Capacitor (P281-8806): High-capacitance start assist | Rated for single-phase compressor start circuit | Bleed resistor included for safe discharge between cycles
  • OEM vs Generic: OEM Payne capacitors are manufactured to ICP/Carrier group specifications with tight MFD tolerances. Generic aftermarket capacitors often carry ±10% variance, which accelerates compressor wear, increases amp draw, and can void equipment warranties on newer units.
  • Install Difficulty: 2/5 — Always shut off power at the disconnect box and discharge the capacitor fully before handling. Tools needed: 1/4" nut driver, insulated needle-nose pliers, multimeter (capacitance mode). Photograph all wiring connections before removal. The start capacitor wires back to the HERM terminal circuit; double-check polarity markings.
  • Warranty: 1-year OEM factory warranty on both components. Orders placed before 3 PM ship same business day from our climate-controlled warehouse.

Compatibility: These capacitors are matched to the Payne PA12NA024000ABAA 2-ton single-stage split-system condenser. Always verify the MFD rating and voltage printed on your existing capacitor's label or your unit's data plate before ordering — capacitor specs can vary by production run and revision code. Not sure about fitment? Our HVAC parts specialists verify compatibility before you place your order. In stock and ships today.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Capacitor fit my Payne PA12NA024000ABAA?
Yes. This is the factory-specified OEM capacitor for the Payne PA12NA024000ABAA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the capacitor on my Payne PA12NA024000ABAA?
Difficulty: Easy (20–30 min)
Step 1: Turn off power at breaker. Step 2: Open condensing unit panel. Step 3: Photograph the old capacitor wiring (Common/Herm/Fan). Step 4: Discharge old capacitor with insulated screwdriver. Step 5: Disconnect and remove old capacitor. Step 6: Mount new capacitor, reconnect wires to matching terminals. Step 7: Close panel, restore power, test. Tools: screwdriver, needle-nose pliers.
My AC hums but won’t start. What part do I need?
An AC that hums but won’t start is the classic symptom of a failed capacitor. The capacitor provides the electrical boost to start the compressor. When it fails, you hear humming but the motor can’t overcome inertia. Other symptoms: fan spinning slowly, AC cycling on/off rapidly, or a visibly swollen capacitor. Fix: replace capacitor ($15–$80 DIY, 30 min).
Is this capacitor compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne capacitor?
OEM strongly recommended. OEM capacitors have ±6% MFD tolerance vs aftermarket ±10%. The looser tolerance causes motor winding stress, higher temps, and shorter compressor life. Price difference is only $10–$20 — OEM is the clear value choice.
