OEM Payne Pressure Switch High/Low for PA11JA060000AAAA
Payne

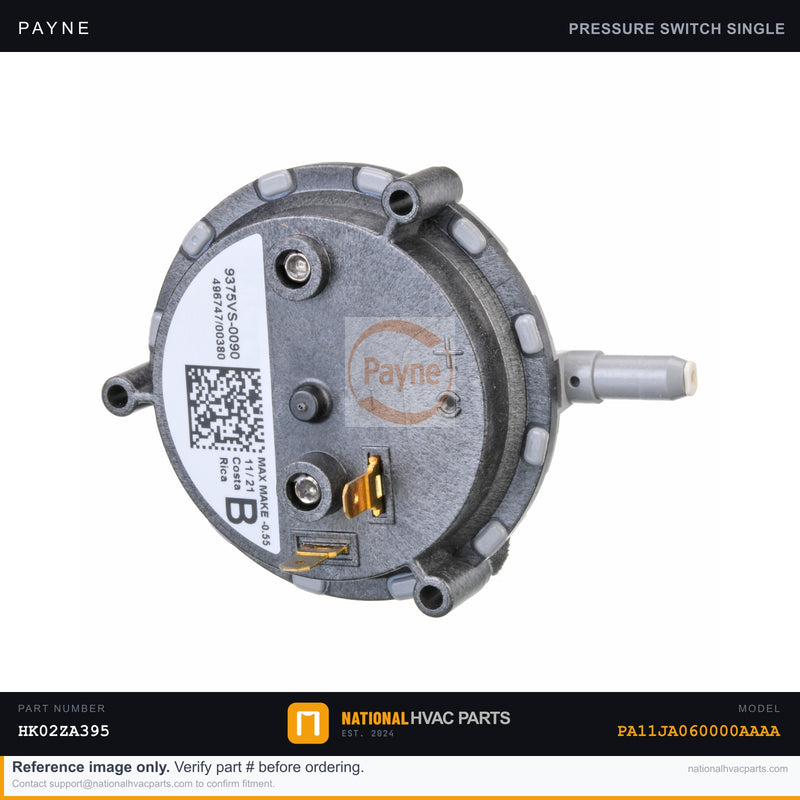

OEM Payne Pressure Switch High/Low for PA11JA060000AAAA

SKU: PAYNE-PA11JA060000AAAA-PRESSURE_SWITCH-HK02ZA395 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

OEM Payne High & Low Pressure Switch for Model PA11JA060000AAAA

These OEM pressure switches — HK02ZA395 (High Pressure Switch) and HK02ZB028 (Low Pressure Switch) — are the factory-specified replacements for the Payne PA11JA060000AAAA packaged unit. Pressure switches monitor the inducer motor's draft pressure to confirm safe flue gas evacuation before allowing the ignition sequence to proceed. When either switch fails or a hose/port becomes blocked, the control board receives no proof-of-draft signal and the system locks out before ignition — resulting in a no-heat call with no visible flame activity.

  • Specs: HK02ZA395 — High-stage pressure switch, factory-calibrated W.C. rating | HK02ZB028 — Low-stage pressure switch, factory-calibrated W.C. rating | SPST normally-open contacts | 1/4" barbed inlet port | Designed for the two-stage inducer assembly in the PA11JA060000AAAA
  • OEM vs Generic: OEM pressure switches are calibrated to the exact water-column (W.C.) trip point specified by Payne engineering. Aftermarket substitutes frequently carry ±10–15% W.C. tolerances, causing nuisance lockouts in cold weather or, worse, allowing unsafe draft conditions to go undetected.
  • Install difficulty: 3/5 — Shut off gas and power before servicing. Tools needed: 1/4" nut driver, flathead screwdriver, manometer (recommended to verify W.C. at switch port), and camera to document hose routing. Inspect rubber hose and drain port for blockages before condemning the switch — a plugged drain is the most common root cause.
  • Warranty: 1-year OEM factory warranty on both HK02ZA395 and HK02ZB028. Orders placed before cutoff ship same business day from our warehouse.

Compatibility: Both switches are engineered specifically for the Payne PA11JA060000AAAA packaged gas/electric unit. Verify the defective switch against part numbers HK02ZA395 (high) and HK02ZB028 (low) stamped on the switch body before ordering. If you are unsure which switch has failed, our parts team can assist with diagnostic guidance prior to purchase — ships today.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Pressure Switch fit my Payne PA11JA060000AAAA?
Yes. This is the factory-specified OEM pressure switch for the Payne PA11JA060000AAAA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the pressure switch on my Payne PA11JA060000AAAA?
Difficulty: Medium (20–30 min)
Step 1: Turn off power. Step 2: Locate pressure switch near draft inducer. Step 3: Note tubing orientation. Step 4: Disconnect tubing and wires. Step 5: Remove screw, install new switch. Step 6: Reconnect tubing and wires, restore power.
My furnace shows a pressure switch error. What do I replace?
Furnace LED showing pressure switch error = switch not detecting draft inducer airflow. Try first: clear the rubber tubing to the switch (often clogged with condensation). If problem persists, replace the pressure switch.
Is this pressure switch compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne pressure switch?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
How fast does National HVAC Parts ship?
Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
