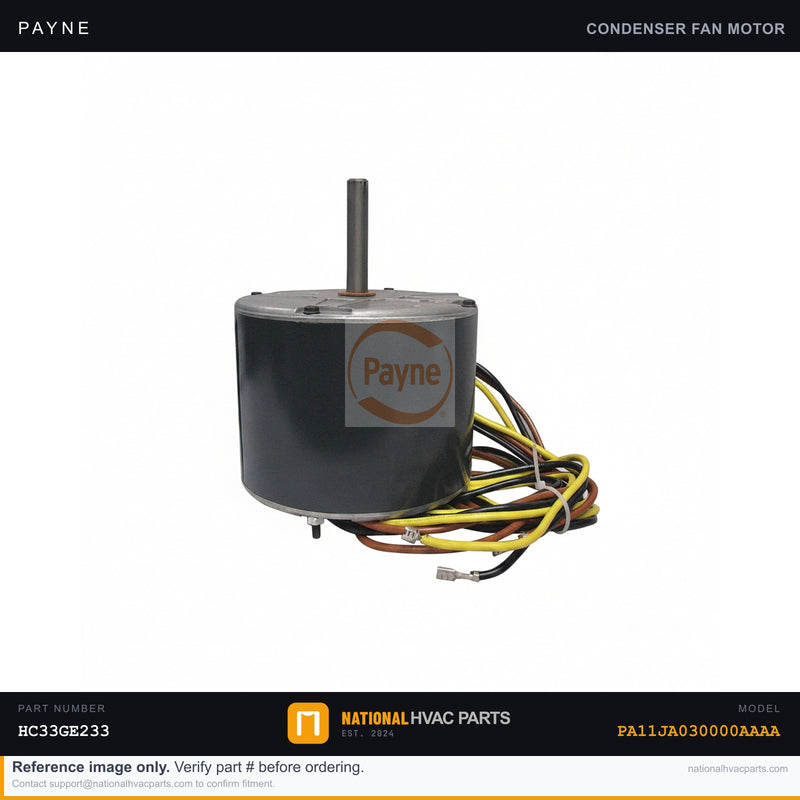

OEM Payne Condenser Fan Motor 1/4 HP 208-230V for PA11JA030000AAAA
Payne

OEM Payne Condenser Fan Motor 1/4 HP 208-230V for PA11JA030000AAAA

SKU: PAYNE-PA11JA030000AAAA-FAN_MOTOR-HC33GE233 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

OEM Payne Condenser Fan Motor HC33GE233 for Model PA11JA030000AAAA

This is the factory-specified OEM condenser fan motor (part number HC33GE233) for the Payne PA11JA030000AAAA split-system air conditioner. The condenser fan motor drives the outdoor unit's fan blade, pulling air across the condenser coil to dissipate heat from the refrigerant. When this motor fails, the condenser coil overheats, triggering high-pressure lockout and causing the system to shut down entirely — often on the hottest days when you need cooling most. Common symptoms include a humming outdoor unit with no fan spin, intermittent shutdowns after a few minutes of operation, or a visibly slow-turning fan blade before complete failure.

  • Specs: OEM Part HC33GE233 | 1/4 HP | 208-230V | Single-phase | Permanent Split Capacitor (PSC) design | Factory-matched RPM, rotation, and shaft diameter for PA11JA030000AAAA
  • OEM vs Generic: This OEM motor is wound and balanced to Payne factory specifications, ensuring correct airflow across the condenser coil. Generic motors often deviate in RPM and amp draw, risking compressor damage from inadequate heat rejection and voiding equipment warranties.
  • Install difficulty: 3/5 — Requires disconnecting power at the disconnect box and verifying zero voltage with a multimeter before opening the unit. Tools needed: 1/4" and 5/16" nut drivers, wire stripper, needle-nose pliers, multimeter. Photograph all wiring connections and blade orientation before removal. Note shaft-up or shaft-down mounting orientation before ordering.
  • Warranty: 1-year OEM factory warranty against defects in materials and workmanship. Ships same business day from our climate-controlled warehouse.

Compatibility: Designed specifically for the Payne PA11JA030000AAAA condensing unit. Always verify horsepower, voltage, RPM, rotation direction, and shaft diameter against your unit's data plate before installation. Replacing a fan motor with incorrect specs will reduce efficiency and can cause premature compressor failure. Have your model and data plate specs ready — our HVAC parts specialists are available to confirm fitment before you order. In stock and ships today.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Fan Motor fit my Payne PA11JA030000AAAA?
Yes. This is the factory-specified OEM fan motor for the Payne PA11JA030000AAAA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the fan motor on my Payne PA11JA030000AAAA?
Difficulty: Medium-Hard (1–2 hrs)
Step 1: Turn off breaker. Step 2: Note motor specs: HP, RPM, voltage, rotation direction. Step 3: Remove old motor from mounting. Step 4: Transfer fan blade to new motor. Step 5: Mount new motor, reconnect wiring. Step 6: Restore power, verify rotation direction.
My AC fan isn’t spinning. What part do I need?
Fan not spinning, spinning slowly, or making grinding/squealing noises = motor failure. Grinding = bearings failed. Squealing = bearings dry. No spin + hum = check the motor capacitor first before replacing the entire motor.
Is this fan motor compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne fan motor?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
