OEM Payne Condenser Fan Motor 1/4-1/2 HP for PA10JA04200MADAA
Payne

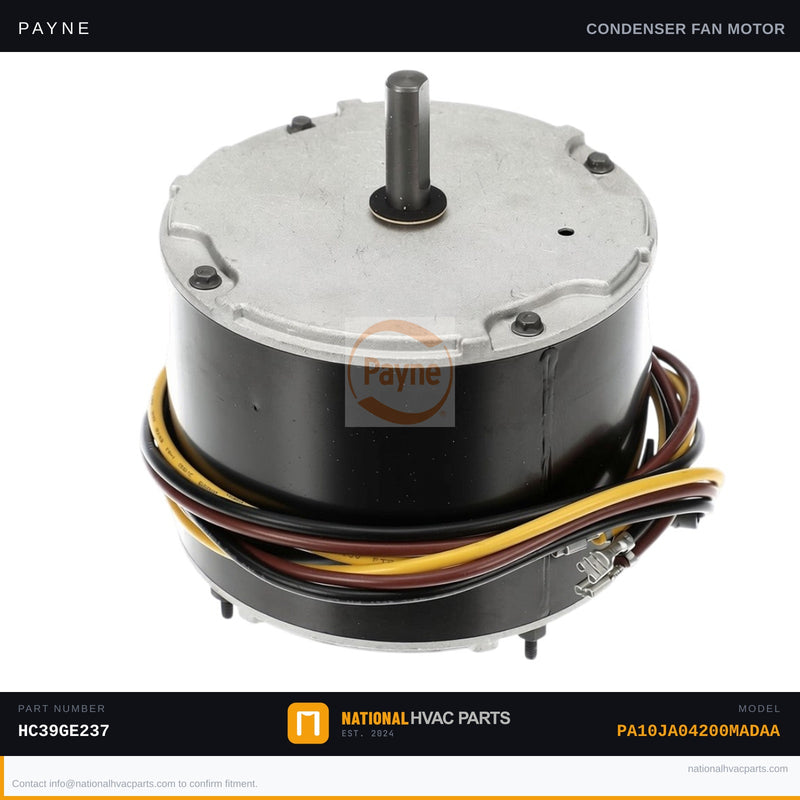

OEM Payne Condenser Fan Motor 1/4-1/2 HP for PA10JA04200MADAA

SKU: PAYNE-PA10JA04200MADAA-FAN_MOTOR-HC39GE237 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

OEM Payne Condenser Fan Motor for Model PA10JA04200MADAA

This OEM condenser fan motor is the factory-specified replacement for the Payne PA10JA04200MADAA split-system air conditioner. The condenser fan motor drives the outdoor unit's fan blade, pulling air across the condenser coil to expel heat from the refrigerant. When this motor fails, the outdoor unit will overheat, triggering high-pressure cutouts, causing the compressor to short-cycle, or resulting in a complete no-cooling condition. Common symptoms include a humming outdoor unit with a stationary fan blade, intermittent shutdowns on hot days, or a visibly seized or wobbling fan. Replaces OEM part numbers HC39GE237 and HC40GE232.

  • Specs: 1/4–1/2 HP | Multi-speed capable | 208–230V single-phase | Factory-matched RPM, rotation direction, and 1/2" shaft diameter for direct OEM fitment
  • OEM vs Generic: This OEM motor meets Payne's exact torque, thermal protection, and bearing specifications. Generic motors often use lower-grade bearings and looser electrical tolerances, leading to premature failure — especially under peak summer loads.
  • Install difficulty: 3/5 — Requires disconnecting power at the breaker and capacitor discharge before beginning. Tools needed: 1/4" and 5/16" nut drivers, wire strippers, multimeter, and blade puller for fan removal. Always photograph the wiring harness and blade orientation before disassembly.
  • Warranty: 1-year OEM factory warranty against defects. In-stock and ships same business day from our NationalHVACParts.com warehouse.

Compatibility: Engineered specifically for the Payne PA10JA04200MADAA condensing unit. Verify HP, voltage, and shaft diameter against your unit's data plate before ordering. Cross-references OEM part numbers HC39GE237 and HC40GE232. Our fitment team is available to confirm compatibility before you order — get back up and running fast with same-day shipping.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Fan Motor fit my Payne PA10JA04200MADAA?
Yes. This is the factory-specified OEM fan motor for the Payne PA10JA04200MADAA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the fan motor on my Payne PA10JA04200MADAA?
Difficulty: Medium-Hard (1–2 hrs)
Step 1: Turn off breaker. Step 2: Note motor specs: HP, RPM, voltage, rotation direction. Step 3: Remove old motor from mounting. Step 4: Transfer fan blade to new motor. Step 5: Mount new motor, reconnect wiring. Step 6: Restore power, verify rotation direction.
My AC fan isn’t spinning. What part do I need?
Fan not spinning, spinning slowly, or making grinding/squealing noises = motor failure. Grinding = bearings failed. Squealing = bearings dry. No spin + hum = check the motor capacitor first before replacing the entire motor.
Is this fan motor compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne fan motor?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
How fast does National HVAC Parts ship?
Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
