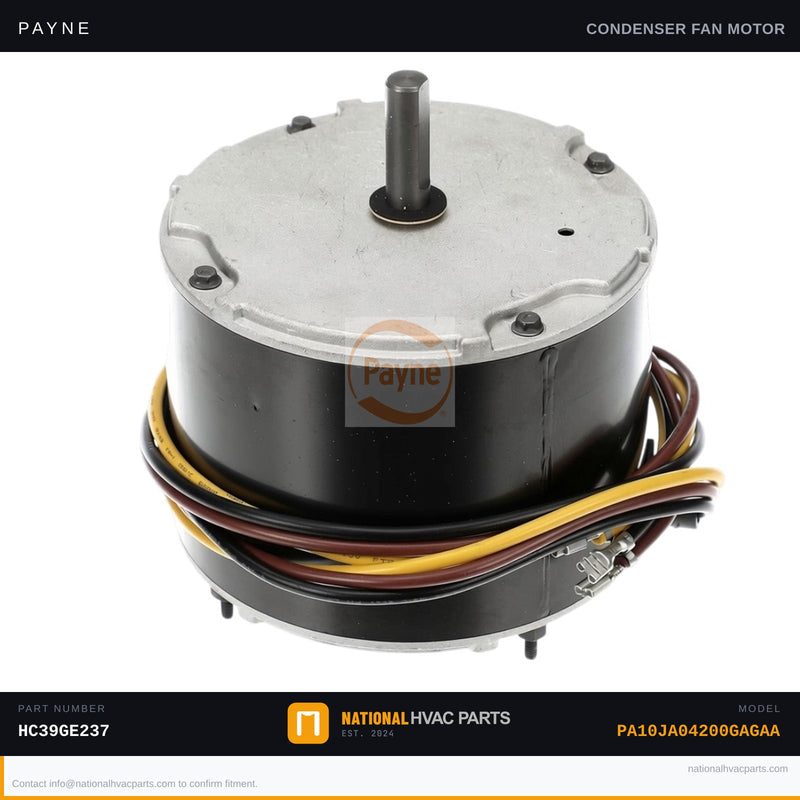

OEM Payne Condenser Fan Motor 1/4HP for PA10JA04200GAGAA
Payne

OEM Payne Condenser Fan Motor 1/4HP for PA10JA04200GAGAA

SKU: PAYNE-PA10JA04200GAGAA-FAN_MOTOR-HC39GE237 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

OEM Payne Condenser Fan Motor for Model PA10JA04200GAGAA

This OEM condenser fan motor is the factory-specified replacement for the Payne PA10JA04200GAGAA split-system air conditioner. The condenser fan motor drives the outdoor unit's fan blade, pulling air across the condenser coil to dissipate heat from the refrigerant. When this motor fails, airflow stops, head pressure rises, and the system overheats — leading to compressor shutdown, tripped high-pressure safeties, or a complete no-cool condition. Common symptoms include a humming outdoor unit with no fan movement, intermittent shutdowns on hot days, or a visibly seized or wobbling fan blade.

  • Specs: Replaces OEM part numbers HC39GE237 and HC40GE232 | 1/4–1/2 HP range | 208–230V single-phase | Factory-matched RPM, rotation direction, and shaft diameter for direct drop-in fit
  • OEM vs Generic: OEM motors are wound to exact factory torque and speed specifications, ensuring proper airflow and refrigerant heat rejection. Generic motors often vary in RPM and amp draw, risking compressor damage and shortened system life.
  • Install difficulty: 3/5 — Disconnect power at the disconnect box and verify with a multimeter before beginning. Tools needed: 1/4" and 5/16" nut drivers, adjustable wrench, multimeter, wire nuts. Photograph all wiring and fan blade orientation before removal. Note blade pitch and reassemble in the same direction.
  • Warranty: 1-year OEM factory warranty. Orders placed before cutoff ship same business day from our climate-controlled warehouse.

Compatibility: Designed for the Payne PA10JA04200GAGAA condensing unit. Always verify horsepower, voltage, RPM, rotation, and shaft diameter against your unit's data plate and existing motor label before ordering. Our fitment team is available to confirm compatibility — just reach out before you buy. Order now and get same-day shipping on in-stock OEM parts.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Fan Motor fit my Payne PA10JA04200GAGAA?
Yes. This is the factory-specified OEM fan motor for the Payne PA10JA04200GAGAA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the fan motor on my Payne PA10JA04200GAGAA?
Difficulty: Medium-Hard (1–2 hrs)
Step 1: Turn off breaker. Step 2: Note motor specs: HP, RPM, voltage, rotation direction. Step 3: Remove old motor from mounting. Step 4: Transfer fan blade to new motor. Step 5: Mount new motor, reconnect wiring. Step 6: Restore power, verify rotation direction.
My AC fan isn’t spinning. What part do I need?
Fan not spinning, spinning slowly, or making grinding/squealing noises = motor failure. Grinding = bearings failed. Squealing = bearings dry. No spin + hum = check the motor capacitor first before replacing the entire motor.
Is this fan motor compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne fan motor?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
How fast does National HVAC Parts ship?
Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
