OEM Payne Condenser Fan Motor 1/4-1/2 HP for PA10JA03600MACAA
Payne

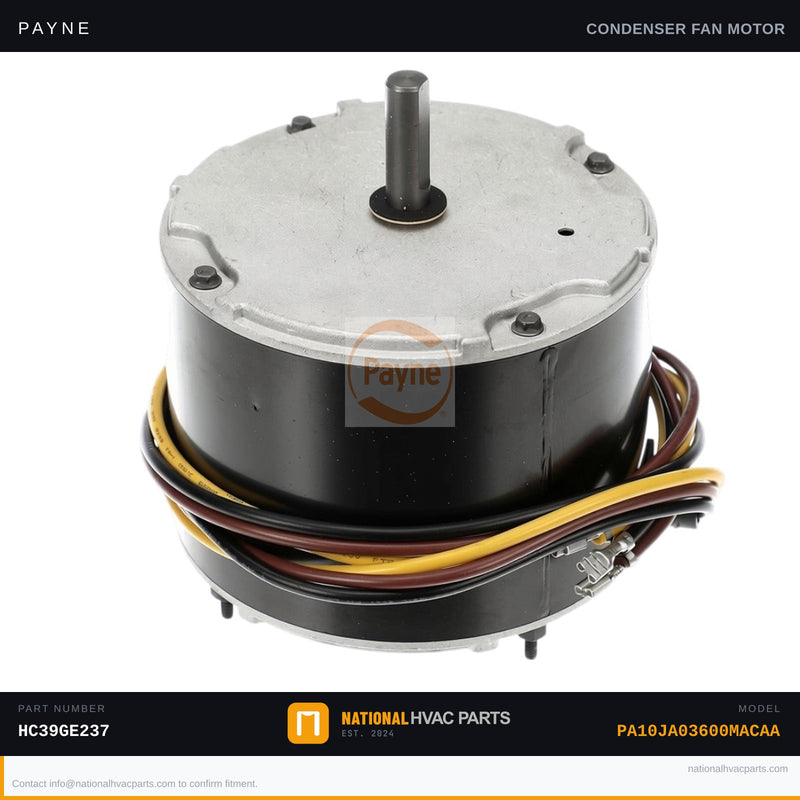

OEM Payne Condenser Fan Motor 1/4-1/2 HP for PA10JA03600MACAA

SKU: PAYNE-PA10JA03600MACAA-FAN_MOTOR-HC39GE237 Brand: Payne

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

OEM Payne Condenser Fan Motor for Model PA10JA03600MACAA

This is the factory-specified OEM replacement condenser fan motor for the Payne PA10JA03600MACAA split-system air conditioner. The condenser fan motor drives the outdoor unit's fan blade, pulling air across the refrigerant coil to dissipate heat. When this motor fails, the condenser cannot reject heat properly — leading to rapid high-pressure lockout, compressor overheating, and a complete loss of cooling. Common failure signs include a humming outdoor unit with a stationary fan blade, intermittent cooling that cuts out on hot days, or a tripped thermal overload on the motor itself.

  • Specs: Replaces OEM part numbers HC39GE237 and HC40GE232 | Rated 1/4–1/2 HP | Factory-matched RPM, rotation direction, and shaft diameter for the PA10JA03600MACAA | 208–230V single-phase | Permanent split-capacitor (PSC) design
  • OEM vs Generic: OEM motors are wound and balanced to Payne's exact factory specifications, ensuring correct airflow CFM across the condenser coil. Generic motors frequently vary in RPM and rotation, reducing system efficiency, shortening compressor life, and potentially voiding equipment warranties.
  • Install difficulty: 3/5 — Requires disconnecting power at the disconnect box and verifying capacitor discharge before starting. Tools needed: nut driver set, adjustable wrench, wire stripper, multimeter, and a helper to support the fan blade assembly. Document all wiring connections with photos before removal. Reuse the existing run capacitor only if it tests within spec.
  • Warranty: 1-year OEM factory warranty against defects in materials and workmanship. Orders placed before cutoff ship the same business day from our climate-controlled warehouse.

Compatibility: Engineered specifically for the Payne PA10JA03600MACAA 3-ton split-system condenser. Always confirm HP, voltage, RPM, shaft diameter, and rotation direction against your unit's data plate and existing motor label before installation. Our fitment specialists are available to verify compatibility before you order — same-day shipping means you're back up and running fast.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Fan Motor fit my Payne PA10JA03600MACAA?
Yes. This is the factory-specified OEM fan motor for the Payne PA10JA03600MACAA. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the fan motor on my Payne PA10JA03600MACAA?
Difficulty: Medium-Hard (1–2 hrs)
Step 1: Turn off breaker. Step 2: Note motor specs: HP, RPM, voltage, rotation direction. Step 3: Remove old motor from mounting. Step 4: Transfer fan blade to new motor. Step 5: Mount new motor, reconnect wiring. Step 6: Restore power, verify rotation direction.
My AC fan isn’t spinning. What part do I need?
Fan not spinning, spinning slowly, or making grinding/squealing noises = motor failure. Grinding = bearings failed. Squealing = bearings dry. No spin + hum = check the motor capacitor first before replacing the entire motor.
Is this fan motor compatible with Bryant or Payne too?
Many Payne parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Payne fan motor?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
How fast does National HVAC Parts ship?
Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
