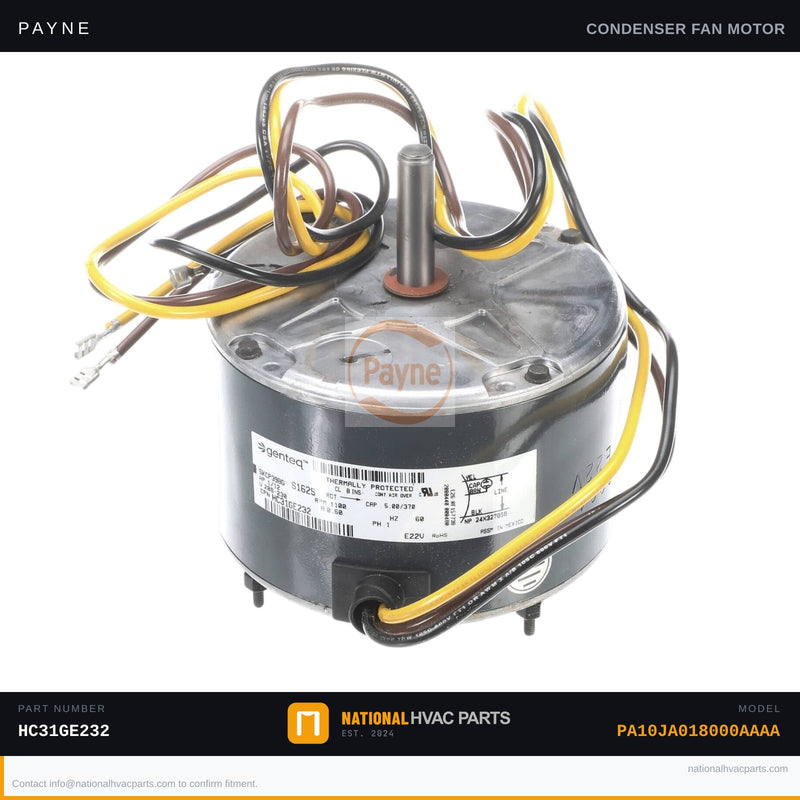

OEM Payne Condenser Fan Motor HC31GE232 for Model PA10JA018000AAAA

This OEM condenser fan motor (part number HC31GE232) is the factory-specified replacement for the Payne PA10JA018000AAAA split-system air conditioner. The condenser fan motor drives the outdoor fan blade to pull air across the condenser coil, dissipating heat from the refrigerant. When this motor fails, the condenser coil overheats, the high-pressure limit trips, and the system shuts down entirely — leaving you with a no-cool situation on the hottest days. Common symptoms include the outdoor fan not spinning, a humming sound with no blade rotation, or the unit short-cycling due to high head pressure.

• Specs: OEM Part No. HC31GE232 | Factory-matched horsepower, RPM, and rotation direction | Correct shaft diameter and mounting configuration for Payne PA10JA018000AAAA | 208/230V single-phase operation
• OEM vs Generic: This is a genuine OEM motor wound to factory specifications, ensuring correct speed, torque, and thermal protection ratings. Aftermarket motors often deviate in RPM or amperage draw, risking compressor damage and voiding equipment warranties.
• Install difficulty: 3/5 — Disconnect power at the breaker and verify zero voltage before opening the cabinet. Tools needed: nut driver set, wire stripper, multimeter, and blade puller. Always note blade pitch orientation and wire color positions before disconnecting. Capacitor may need replacement at the same time — inspect while you're in there.
• Warranty: 1-year OEM factory warranty against defects. Ships same business day from our climate-controlled warehouse to protect motor windings in transit.

Compatibility: Designed specifically for the Payne PA10JA018000AAAA condensing unit. Always confirm horsepower, voltage, RPM, and shaft diameter against your unit's data plate before completing your order. Our HVAC parts specialists are available to verify fitment — order with confidence and get back to cool faster.
