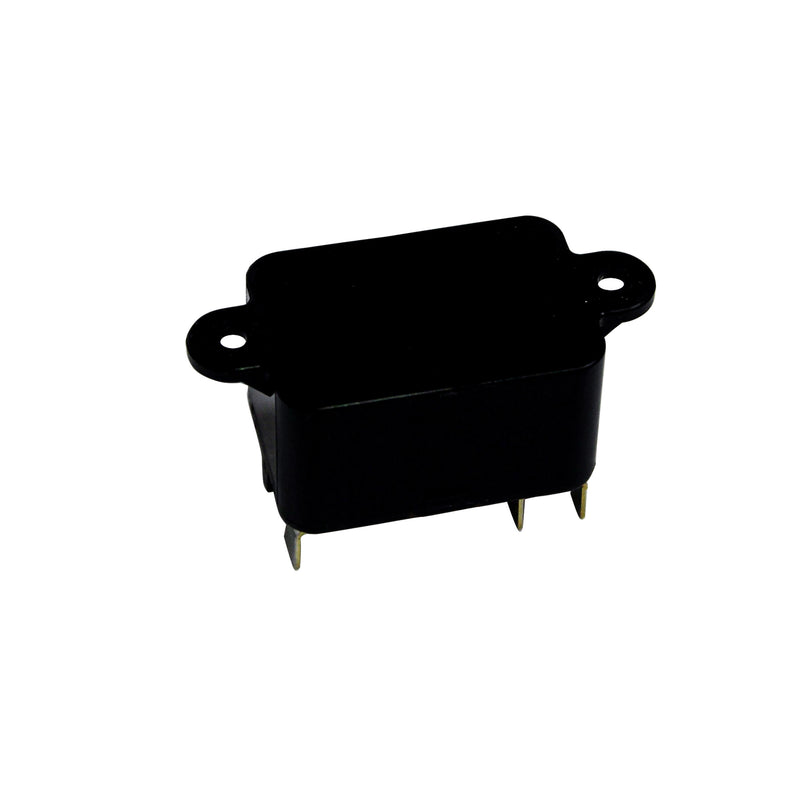

OEM Payne Relay for PH13NB02400GAAAA — HN61KK324
OEM Guaranteed
Same-Day Ship
30-Day Returns
Secure Checkout
Genuine Payne OEM part HN61KK324 — relay for the Payne PH13NB02400GAAAA (payne split system heat pump 13 seer, PAYNE SPLIT SYSTEM HEAT PUMP 13 SEER, 208/230-1-60). This part switches power to a specific component when the control circuit calls for it. Factory replacement verified against Carrier Corporation's own parts data for this model (Payne is a Carrier brand). Located in: Accessory. Quantity used on this unit: 2.
✓ Guaranteed to fit the PH13NB02400GAAAA — or the return shipping is on us. Same-day shipping on orders before 3PM CST, from Houston, TX.
⚡ Installation: 🟡 Moderate DIY · 20–40 min · Drivers, multimeter
Kill power and verify with a meter; transfer wires one terminal at a time. Guidance only — when unsure, hire a licensed HVAC technician.
When this part fails, you'll typically see: component not energizing, clicking without engagement, intermittent operation.
Will this fit my PH13NB02400GAAAA?
Yes — this part is verified against the manufacturer's parts list for the PH13NB02400GAAAA. Have a different model? Search your model number in our store; this part serves other Carrier-family units as well.
Is this an OEM part?
Genuine Carrier Corporation (Payne is a Carrier brand) OEM — the same part your unit was built with, not an aftermarket substitute.
What if it doesn't fit?
We send a prepaid return label and issue a full refund — 30 days, uninstalled parts. Installed or energized parts are non-returnable; manufacturing defects are handled under the manufacturer's warranty.
When will it ship?
Order before 3PM CST and it ships the same business day from Houston, TX.
Can I install it myself?
This part is rated Moderate DIY (20–40 min typical). Comfortable DIYers handle this with basic tools — follow the safety note above.
Does the relay need to match exactly?
Match coil voltage and contact rating exactly — the OEM part number guarantees both.
