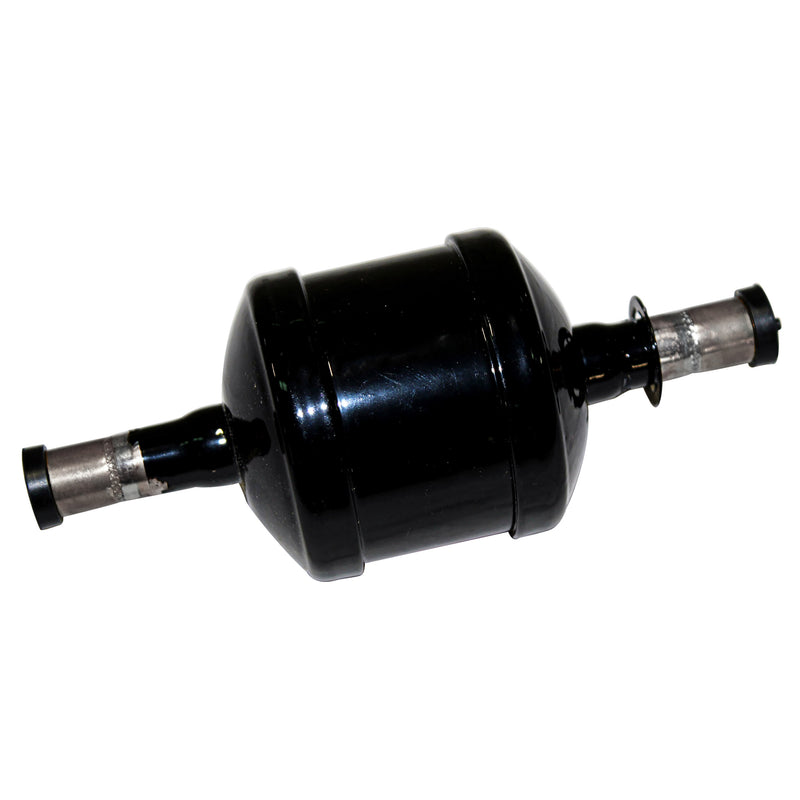

OEM Payne Muffler for PH13NB02400GAAAA — LM10KH017
OEM Guaranteed
Same-Day Ship
30-Day Returns
Secure Checkout
Genuine Payne OEM part LM10KH017 — muffler for the Payne PH13NB02400GAAAA (payne split system heat pump 13 seer, PAYNE SPLIT SYSTEM HEAT PUMP 13 SEER, 208/230-1-60). This part carries refrigerant between components — factory-bent to fit. Factory replacement verified against Carrier Corporation's own parts data for this model (Payne is a Carrier brand). Listed by the manufacturer as a critical service part for this unit. Located in: Coil And Piping.
✓ Guaranteed to fit the PH13NB02400GAAAA — or the return shipping is on us. Same-day shipping on orders before 3PM CST, from Houston, TX.
⚡ Installation: 🔴 Licensed Pro Only · 1–3 hrs · EPA 608 certified tools
Refrigerant line work requires certified recovery, brazing, and recharge. Guidance only — when unsure, hire a licensed HVAC technician.
Will this fit my PH13NB02400GAAAA?
Yes — this part is verified against the manufacturer's parts list for the PH13NB02400GAAAA. Have a different model? Search your model number in our store; this part serves other Carrier-family units as well.
Is this an OEM part?
Genuine Carrier Corporation (Payne is a Carrier brand) OEM — the same part your unit was built with, not an aftermarket substitute.
What if it doesn't fit?
We send a prepaid return label and issue a full refund — 30 days, uninstalled parts. Installed or energized parts are non-returnable; manufacturing defects are handled under the manufacturer's warranty.
When will it ship?
Order before 3PM CST and it ships the same business day from Houston, TX.
Can I install it myself?
This part is rated Licensed Pro Only (1–3 hrs typical). It involves the sealed refrigerant system or combustion safety — federal law requires an EPA 608 certified technician for refrigerant work.
Why buy the OEM tube assembly?
Factory bends, correct diameter, and flare/braze ends that land exactly where the unit needs them — field-bending copper to match costs more than the part.
