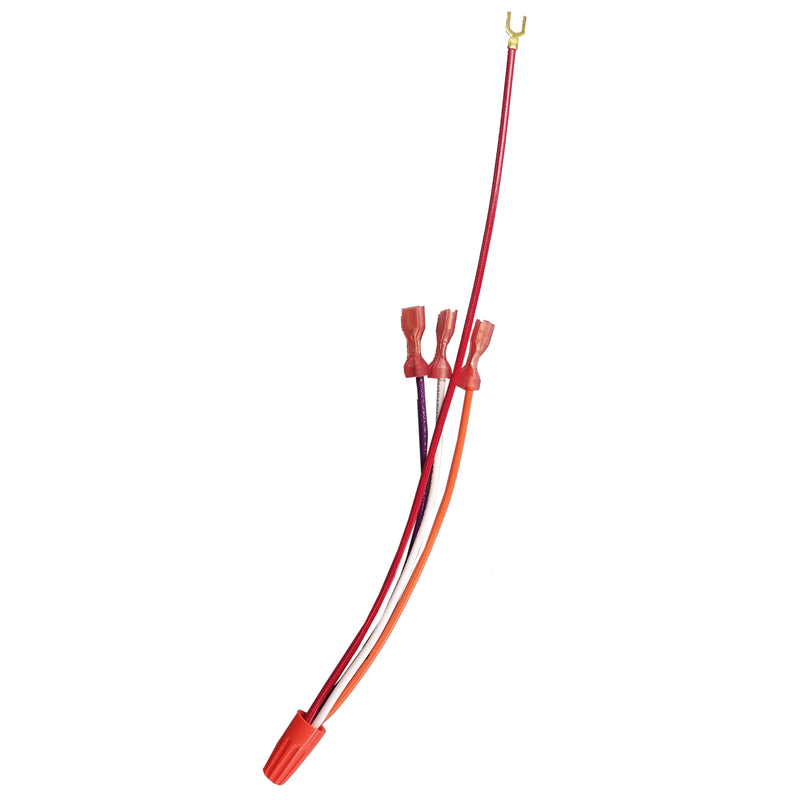

OEM Payne Harness Assembly for PH15NA042000BAAA — 301385-701
OEM Guaranteed
Same-Day Ship
30-Day Returns
Secure Checkout
Genuine Payne OEM part 301385-701 — harness assembly for the Payne PH15NA042000BAAA (payne split system heat pump 15 seer, PAYNE SPLIT SYSTEM HEAT PUMP 15 SEER, 208/230-1-60). This part carries factory-routed power and control wiring with the correct connectors. Factory replacement verified against Carrier Corporation's own parts data for this model (Payne is a Carrier brand). Located in: Accessory.
✓ Guaranteed to fit the PH15NA042000BAAA — or the return shipping is on us. Same-day shipping on orders before 3PM CST, from Houston, TX.
⚡ Installation: 🟡 Moderate DIY · 30–60 min · Drivers, zip ties
Route exactly as the factory harness ran — away from hot and moving parts. Guidance only — when unsure, hire a licensed HVAC technician.
Will this fit my PH15NA042000BAAA?
Yes — this part is verified against the manufacturer's parts list for the PH15NA042000BAAA. Have a different model? Search your model number in our store; this part serves other Carrier-family units as well.
Is this an OEM part?
Genuine Carrier Corporation (Payne is a Carrier brand) OEM — the same part your unit was built with, not an aftermarket substitute.
What if it doesn't fit?
We send a prepaid return label and issue a full refund — 30 days, uninstalled parts. Installed or energized parts are non-returnable; manufacturing defects are handled under the manufacturer's warranty.
When will it ship?
Order before 3PM CST and it ships the same business day from Houston, TX.
Can I install it myself?
This part is rated Moderate DIY (30–60 min typical). Comfortable DIYers handle this with basic tools — follow the safety note above.
Why buy the harness instead of splicing?
Factory connectors, correct gauge, and routing that survives heat and vibration — splices in a condensing environment fail early.
