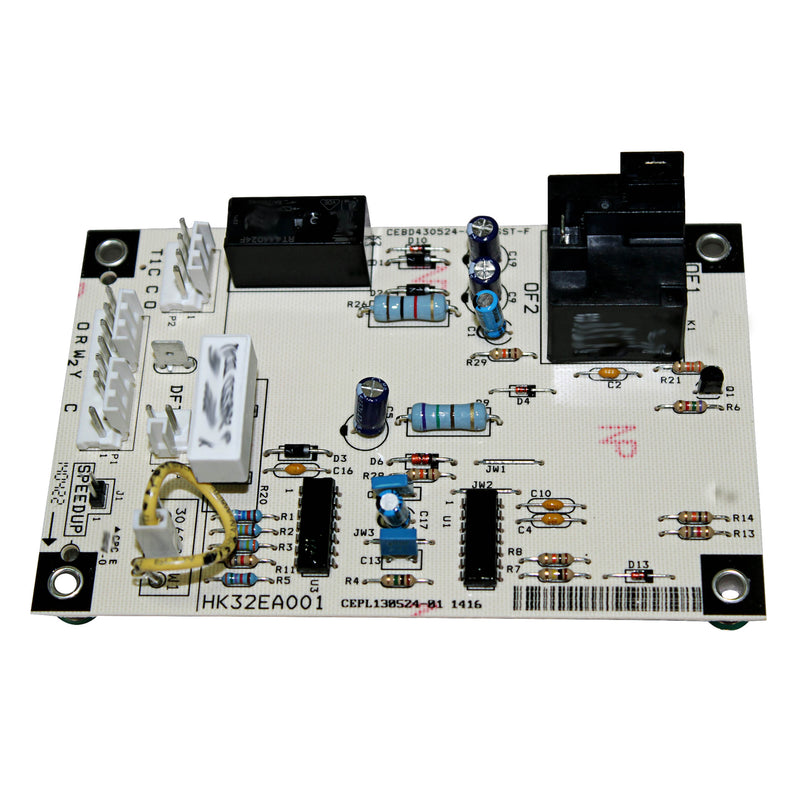

OEM Payne Board-Circuit for PH15NA042000BAAA — HK32EA001
OEM Guaranteed
Same-Day Ship
30-Day Returns
Secure Checkout
Genuine Payne OEM part HK32EA001 — board-circuit for the Payne PH15NA042000BAAA (payne split system heat pump 15 seer, PAYNE SPLIT SYSTEM HEAT PUMP 15 SEER, 208/230-1-60). This part is the brain — sequencing ignition, blower, and safeties every cycle. Factory replacement verified against Carrier Corporation's own parts data for this model (Payne is a Carrier brand). Located in: Electrical.
✓ Guaranteed to fit the PH15NA042000BAAA — or the return shipping is on us. Same-day shipping on orders before 3PM CST, from Houston, TX.
⚡ Installation: 🟠 Pro Recommended · 45–90 min · Drivers, camera, anti-static strap
Photograph EVERY connector before touching one. A board rarely fails alone — find what killed it. Guidance only — when unsure, hire a licensed HVAC technician.
When this part fails, you'll typically see: dead unit with power present, error LEDs, relays on the board clicking without action, burnt smell.
Will this fit my PH15NA042000BAAA?
Yes — this part is verified against the manufacturer's parts list for the PH15NA042000BAAA. Have a different model? Search your model number in our store; this part serves other Carrier-family units as well.
Is this an OEM part?
Genuine Carrier Corporation (Payne is a Carrier brand) OEM — the same part your unit was built with, not an aftermarket substitute.
What if it doesn't fit?
We send a prepaid return label and issue a full refund — 30 days, uninstalled parts. Installed or energized parts are non-returnable; manufacturing defects are handled under the manufacturer's warranty.
When will it ship?
Order before 3PM CST and it ships the same business day from Houston, TX.
Can I install it myself?
This part is rated Pro Recommended (45–90 min typical). A licensed technician is strongly recommended.
Why do control boards fail?
Power surges, moisture, and failing loads (a shorting inducer or transformer) — find and fix the cause or the new board risks the same fate.
