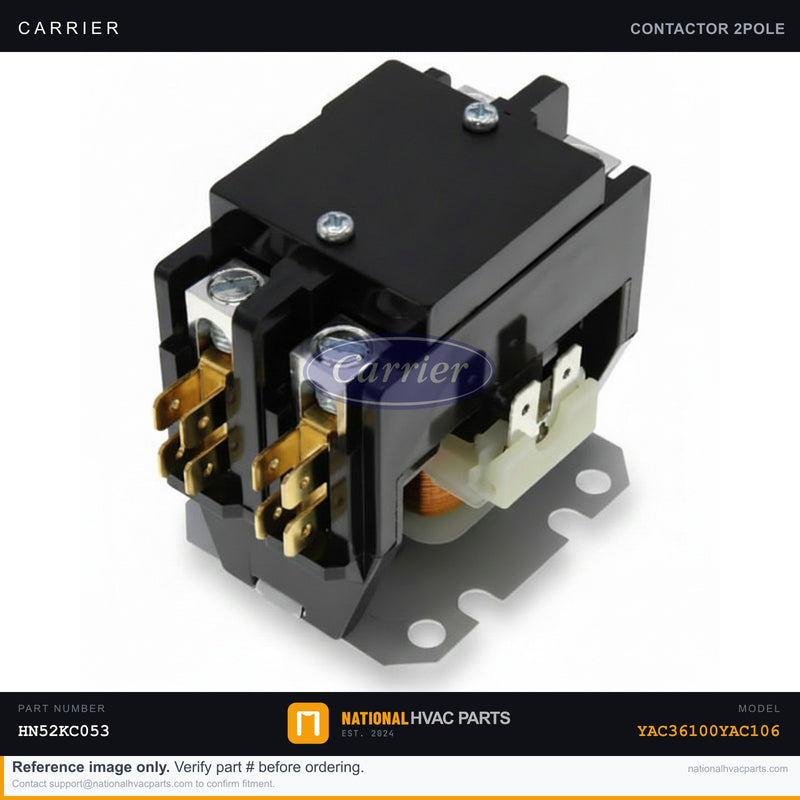

OEM Carrier Contactor Replacement for YAC36100YAC106 AC Unit

The contactor is the heavy-duty electrical switch that powers your Carrier YAC36100YAC106 into operation. When the thermostat calls for cooling, a 24-volt signal energizes the contactor's coil, pulling its contacts closed to send line voltage to the compressor and condenser fan motor. It cycles thousands of times a season, so it's one of the most common failure points in any outdoor unit. When the contacts pit, burn, or weld, you'll notice a unit that won't start, an audible buzzing or chattering at the contactor, a compressor that won't shut off even when the thermostat is satisfied, no cool air, or a faint burnt-plastic smell near the electrical panel. Specs to match: contactors are rated by pole count (single- or double-pole), coil voltage (24V is standard for residential Carrier equipment), and contact current rating in amps/FLA (commonly 30 or 40A). Confirm the pole count and amp rating on your existing contactor before ordering — an OEM-spec part keeps the silver-alloy contacts and coil pull-in voltage exactly where the unit expects them. Why OEM matters: generic contactors frequently use undersized contacts with lower silver content, which pit and arc faster, raise resistance, and eventually weld shut — leaving the compressor running nonstop or failing to start. Cheaper coils can also drop out at the wrong voltage. An OEM contactor delivers the contact mass and coil reliability that protect the expensive compressor downstream. Installation difficulty: 2 of 5. Tools: 1/4" nut driver, insulated screwdriver, needle-nose pliers, multimeter, and your phone to photograph the wiring first. #1 safety warning: kill the breaker and pull the outdoor disconnect before touching anything — the line-voltage terminals are live and lethal even when the unit is 'off.' Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model YAC36100YAC106. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.
