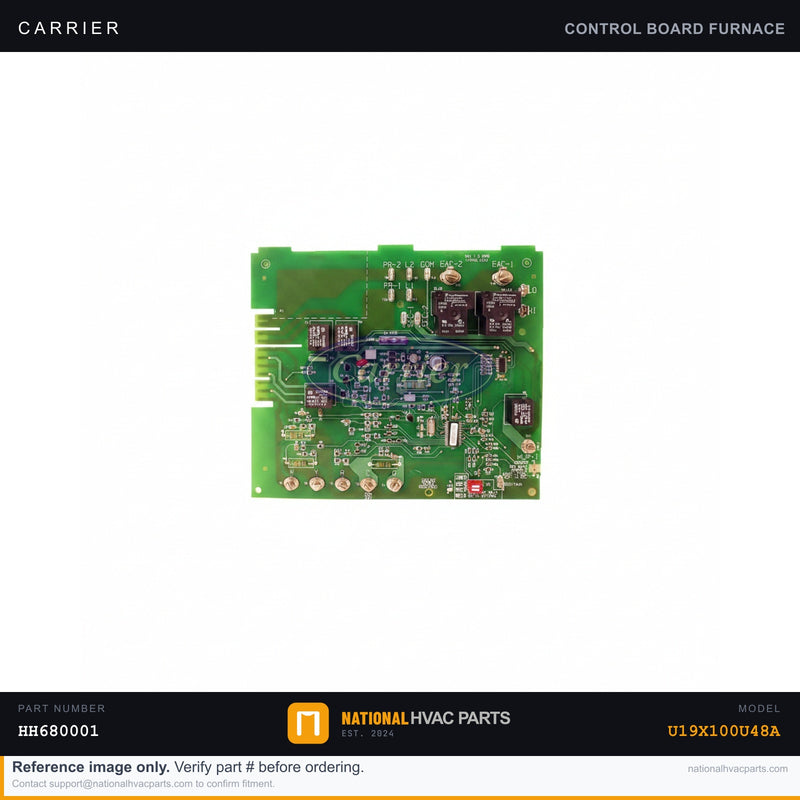

OEM Carrier Integrated Furnace Control Board for U19X100U48A

The integrated furnace control board is the brain of your Carrier unit, coordinating the ignition sequence, inducer draft motor, gas valve, and blower based on thermostat calls and feedback from the limit and flame-sense safeties. When it starts to fail, the symptoms are hard to miss: the furnace short-cycles, the blower runs nonstop or never starts, you get no response to a heat call, or the system fires for a few seconds and then locks out. A flashing diagnostic LED throwing a limit or flame fault while those parts test good usually points straight back to a tired board. This OEM board ships with the full onboard relay complement — inducer, gas valve, and the 120 VAC heat/cool blower taps — plus the exact line- and low-voltage terminal strip that matches the U19X100U48A wiring harness. It is pre-flashed with the correct ignition timing, flame-sense threshold, and soft-lockout logic for this furnace, programming a universal board simply cannot replicate. The control circuit runs 24 VAC with 120 VAC line input. Why OEM matters here: a generic board may physically mount but run different relay ratings and timing, causing nuisance lockouts, premature relay welding, or an inducer that drops out mid-cycle. Matched firmware protects the gas valve and igniter from mistimed energizing that shortens their life. Install difficulty: 3 of 5. You'll need a 1/4" nut driver, a #2 Phillips, needle-nose pliers, and a multimeter; photograph the wiring first. Safety first — kill the furnace breaker and confirm zero voltage before disconnecting anything; the board carries line voltage. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model U19X100U48A. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.

Shipping & Returns

Same-day shipping on orders before 3 PM CST. Standard delivery 2-5 business days, express options available at checkout. 30-day hassle-free returns on uninstalled parts — free return shipping included. 1-year OEM factory warranty coverage.
