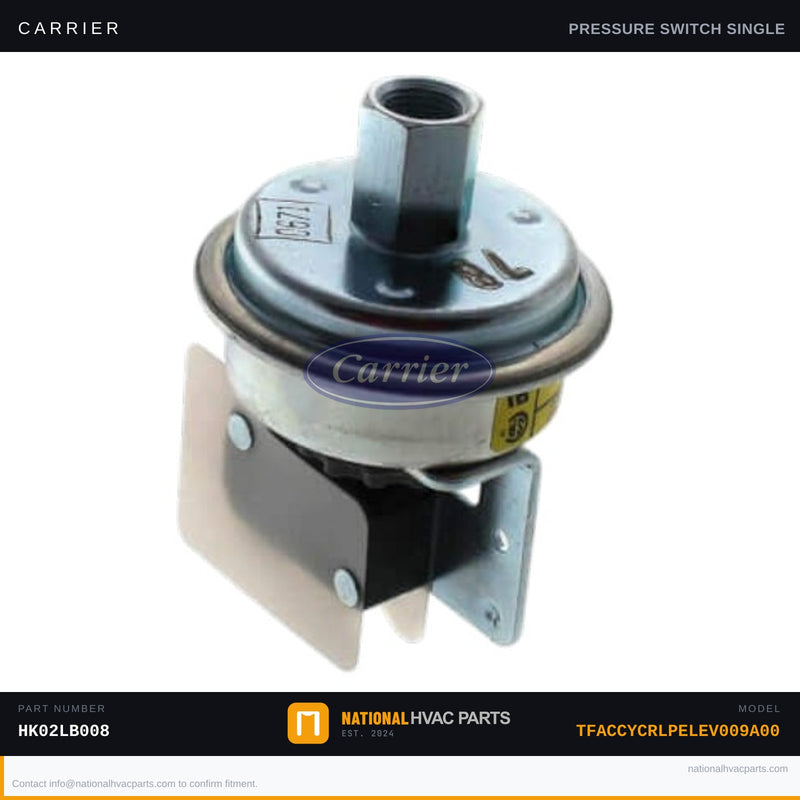

OEM Carrier Pressure Switch Replacement for TFACCYCRLPELEV009A00

The air-pressure switch is a safety interlock that confirms your Carrier furnace's inducer draft motor is actually moving combustion gases before the control board allows the igniter and gas valve to fire. It senses the negative pressure the inducer creates through a small rubber hose. When the switch fails or its sensing port clogs, the furnace tries to start, runs the inducer, then locks out — you get no heat, the blower may run continuously, and the control board flashes a pressure-switch fault code (often 3 or 4 blinks). A switch stuck open causes short-cycling; one stuck closed dangerously bypasses the safety. This is a negative-pressure switch calibrated to the exact set point in inches of water column (for example -0.40" to -0.85" WC) specified for model TFACCYCRLPELEV009A00. The trip set point is printed on the switch body and must match. Why OEM matters: the calibrated diaphragm set point is the entire job of this part. Generic switches with a loose ±0.10" WC tolerance either nuisance-trip on windy days or, far worse, fail to open when the inducer or flue is partially blocked — defeating a life-safety function that guards against carbon monoxide spillage. Never approximate this part. Installation difficulty: 2 of 5. Tools: 1/4" and 5/16" nut driver, plus a soft pipe cleaner to clear the sensing port if needed. #1 safety warning: turn off both the gas supply and the furnace breaker before service, and never jumper or bypass a pressure switch to force a unit to run. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model TFACCYCRLPELEV009A00. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.
