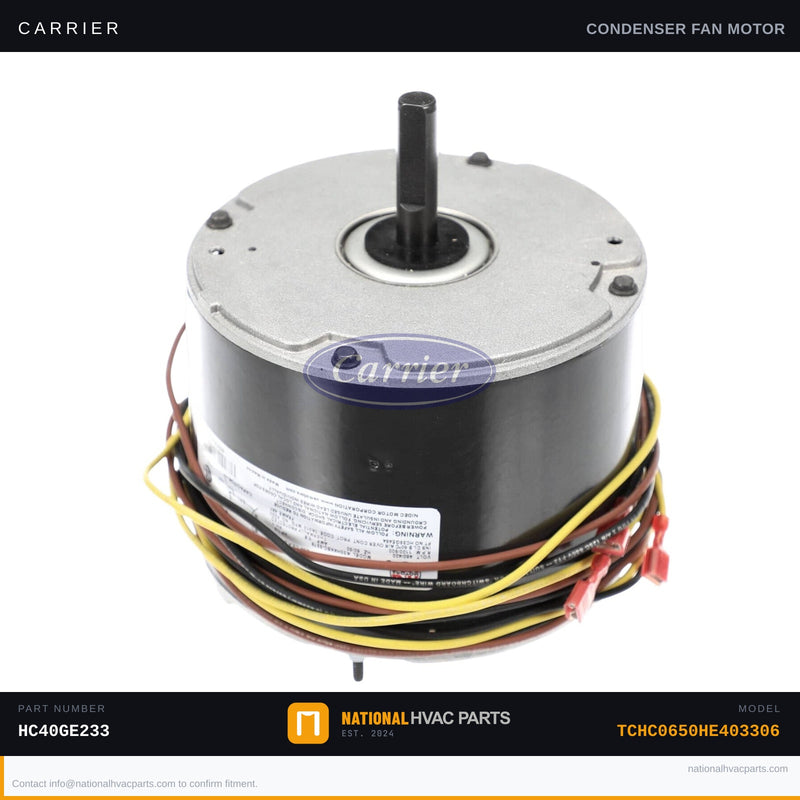

OEM Carrier Condenser Fan Motor 1/4 HP 208-230V for Model TCHC0650HE403306

This OEM condenser fan motor (part number HC40GE233) is the factory-specified replacement for the Carrier TCHC0650HE403306 condensing unit. The condenser fan motor drives the outdoor fan blade to pull air across the condenser coil, rejecting heat from the refrigerant cycle. When this motor fails, you'll typically see the outdoor unit running with no fan movement, the compressor overheating and tripping on high-pressure lockout, or the system shutting down entirely within minutes of startup — a clear sign this motor needs immediate replacement.

• Specs: 1/4 HP | 208–230V | 60 Hz | 1,100 RPM | 1.3 Full Load Amps | Single Phase | Frame 48 | Clockwise rotation (CWLE) | Ball bearings | Continuous duty (S1) rated
• OEM vs Generic: This Factory Authorized Parts™ OEM motor is wound and balanced to exact Carrier factory specifications, preserving published system efficiency ratings, sound quality, and unit certifications. Aftermarket motors often deviate in RPM, FLA, or rotation direction, risking compressor damage and voiding system warranties.
• Install difficulty: 3/5 — Requires disconnecting power at the disconnect box and discharge of any capacitor before beginning. Tools needed: 1/4" and 5/16" nut drivers, wire stripper, multimeter, and shaft puller for fan blade removal. Always photograph existing wiring before disconnecting. Match motor rotation direction and blade pitch before powering on.
• Warranty: 1-year OEM factory warranty on parts and workmanship. In-stock and ships same business day from our warehouse.

Compatibility: Engineered as a direct drop-in replacement for the Carrier TCHC0650HE403306 condensing unit. Verify HP, voltage, RPM, and rotation direction against your unit's data plate before ordering. Note: HC40GE233 has been superseded — our team confirms current cross-reference availability at time of order. Questions about fitment? Contact us before ordering and we'll verify compatibility for you.
