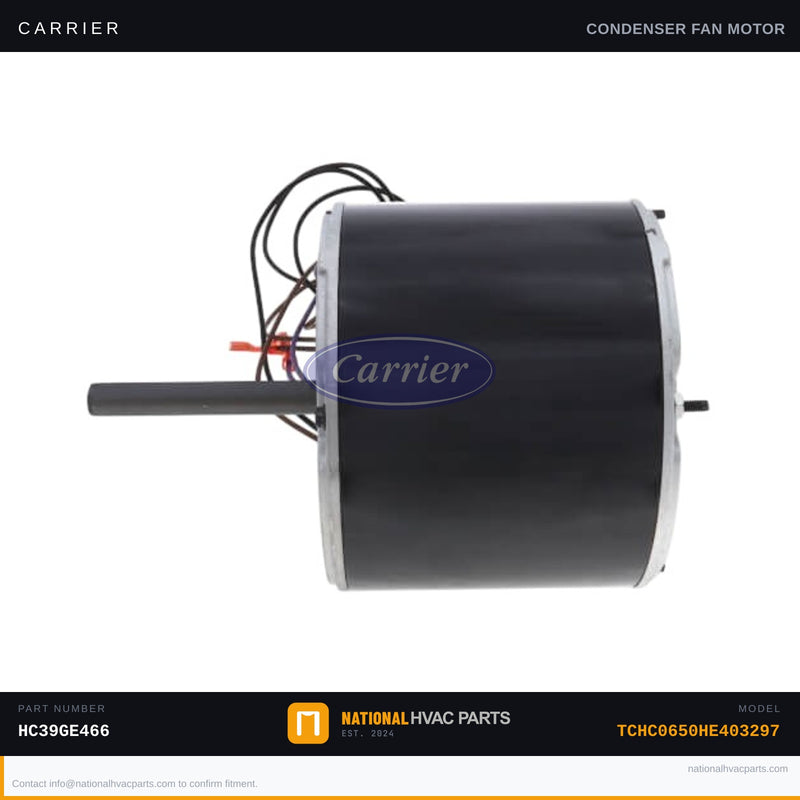

OEM Carrier Condenser Fan Motor 1/4 HP 460V 1100 RPM for Model TCHC0650HE403297

This factory-authorized OEM condenser fan motor (part# HC39GE466) is the exact replacement specified for the Carrier TCHC0650HE403297 condensing unit. The condenser fan motor drives the outdoor fan blade to pull ambient air across the condenser coil, dissipating heat from the refrigerant circuit. When it fails, the unit will overheat, trip the high-pressure limit, and shut down — often leaving you with warm air inside and a locked-out system outside. Common failure symptoms include the fan not spinning at startup, a humming sound with no rotation, or intermittent cycling due to thermal overload.

• Specs: 1/4 HP | 460/400 VAC | 1-Phase | 1100/900 RPM | 0.63/0.83A | PSC Motor | Frame 48 | 5-5/8" Diameter | 1/2" × 2-3/4" Shaft | 4-Bolt Mount (opposite shaft end) | CW rotation (CWLE) | Replaces HC39GE466A, HC39GE465, HC39GE465A | Requires 10 MFD × 370V run capacitor — sold separately
• OEM vs Generic: This is a genuine Carrier Factory Authorized Part manufactured to exact OEM tolerances for noise, vibration, and electrical draw. Generic aftermarket motors are often wound to looser specs, resulting in higher amp draw, excess heat buildup, and shortened service life — especially critical on 460V commercial applications.
• Install Difficulty: 3/5 — Requires disconnecting 460V power at the disconnect box before any service. Capacitor must be safely discharged prior to handling. Tools needed: 1/4" and 5/16" nut drivers, needle-nose pliers, wire stripper, multimeter. Photograph all wiring connections before disconnecting leads. Match shaft orientation and rotation direction before final mounting.
• Warranty: 1-year OEM factory warranty against defects in materials and workmanship. Ships same business day from our warehouse when ordered before cutoff.

Compatibility: Direct OEM replacement for Carrier model TCHC0650HE403297. Also replaces HC39GE466A, HC39GE465, and HC39GE465A. Verify voltage (460V), HP (1/4), and frame size (FR48) on your unit's data plate before ordering. Note: run capacitor (10 MFD × 370V) is not included — we recommend replacing it at the same time to prevent premature motor failure. Questions about fitment? Our HVAC parts specialists confirm compatibility before you order — no guesswork.
