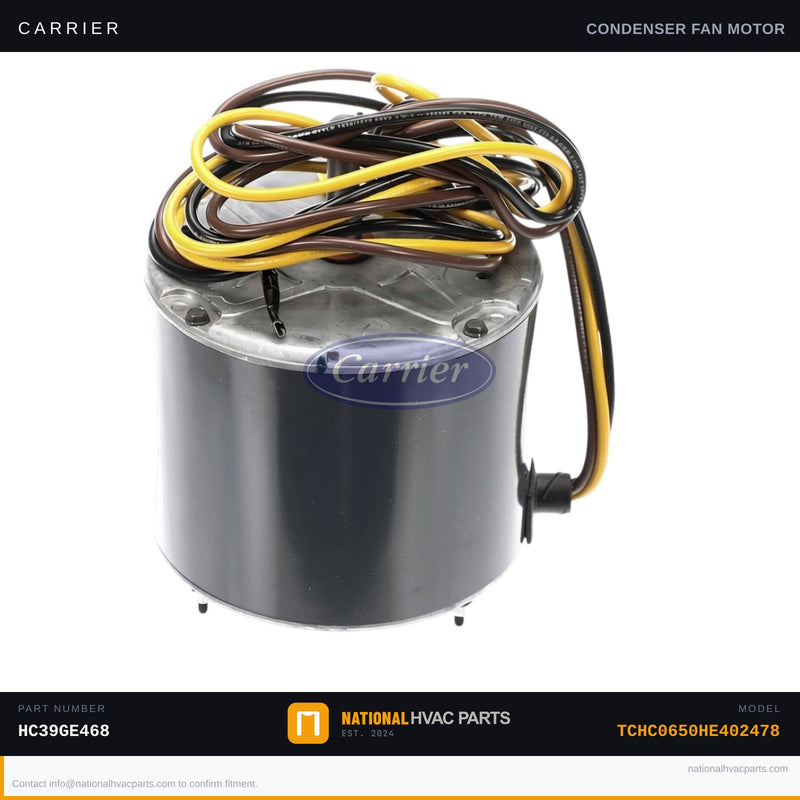

OEM Carrier Condenser Fan Motor 1/4 HP 460V 1100/900 RPM for Model TCHC0650HE402478

This factory OEM condenser fan motor (part number HC39GE468 / HC39GE468A) is the direct replacement for the Carrier TCHC0650HE402478 commercial condensing unit. The condenser fan motor drives the outdoor fan blade that pulls air across the condenser coil, expelling heat from the refrigerant and completing the cooling cycle. When this motor fails, the system will overheat, trigger high-pressure lockout, or shut down entirely — leaving your building without cooling. Common failure symptoms include a humming outdoor unit with no fan movement, intermittent short-cycling, or a seized motor with a burning smell.

• Specs: 1/4 HP | 460/400V | 60/50 Hz | 1100/900 RPM | 0.70 Amps | Single Phase | Frame 48Y (5-5/8" diameter) | 1.5" shaft | Closed enclosure | CW rotation (CCW when viewed shaft-up)
• OEM vs Generic: This is a genuine Carrier factory-authorized part meeting exact torque, bearing, and thermal protection specifications. Aftermarket motors often use lower-grade bearings and may not match the precise RPM curve required for proper refrigerant heat rejection on commercial equipment.
• Install difficulty: 3/5 — Requires disconnecting 460V power at the disconnect box before service. Tools needed: multimeter, 5/16" and 3/8" nut drivers, wire stripper, and a blade puller. Always verify rotation direction and photograph all wiring before disconnecting. We strongly recommend replacing the run capacitor at the same time — a worn capacitor is a leading cause of premature motor failure.
• Warranty: 1-year OEM factory warranty. In stock and ships same business day from our warehouse.

Compatibility: Engineered for Carrier model TCHC0650HE402478. Successor OEM part number HC39GE468A directly replaces the original HC39GE468. Also cross-references GE/Genteq part numbers 5KCP39KFV110AS and 5KCP39MFS303BS. Confirm voltage (460V) on your unit's data plate before ordering — this motor is rated for commercial 460V equipment and is not suitable for standard residential 208-230V applications. Questions about fitment? Our technical team verifies compatibility before you order.
