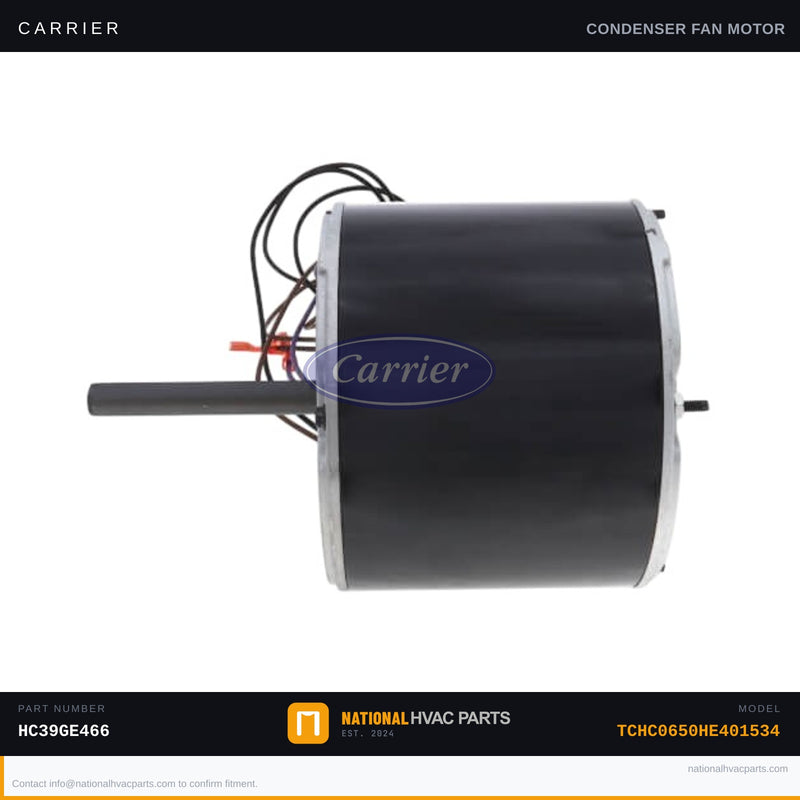

OEM Carrier Condenser Fan Motor 1/4 HP 460V 1100 RPM — HC39GE466 for Model TCHC0650HE401534

This is the genuine OEM Factory Authorized Parts™ condenser fan motor for the Carrier TCHC0650HE401534 commercial condensing unit. The condenser fan motor drives the fan blade that pulls ambient air across the condenser coils, rejecting heat from the refrigerant and keeping the compressor from overheating. When this motor fails, you'll typically see the system short-cycle on high-pressure lockout, hear grinding or squealing from the condenser cabinet, or find the fan blade completely stopped while the compressor is running — a situation that can destroy a compressor within minutes if not addressed.

• Specs: 1/4 HP | 460/400V | 1-Phase | 1100/900 RPM | 0.63/0.83 A | PSC Motor | CW Rotation | 48 Frame | 1/2" x 2-3/4" Shaft | 5-5/8" Diameter | 4-Bolt Mount (opposite shaft end) | Requires 10 MFD × 370V run capacitor (sold separately)
• OEM vs Generic: This Factory Authorized Parts™ motor is built to exact Carrier factory tolerances, preserving published system efficiency ratings, certified sound levels, and safety certifications. Aftermarket motors frequently mis-match RPM or frame dimensions, causing vibration, premature bearing failure, and voided equipment warranties.
• Install difficulty: 3/5 — Disconnect and lock out power before servicing. Tools needed: 1/4" and 5/16" nut driver, wire stripper, multimeter, and a capacitor discharge tool. Photograph all wiring connections before removal. Always replace the run capacitor simultaneously — a capacitor out of tolerance is a leading cause of premature motor failure.
• Warranty: 1-year OEM manufacturer warranty. Stocked in our warehouse — ships same business day when ordered before 3 PM local time.

Compatibility: Engineered as a direct drop-in replacement for Carrier TCHC0650HE401534 commercial condensing units. Also replaces OEM part numbers HC39GE466A, HC39GE465, and HC39GE465A, and cross-references GE/Genteq model 5KCP39MFS303BS. Verify voltage and HP on your unit's data plate before ordering. Our fitment team is available to confirm compatibility — contact us before you order.
