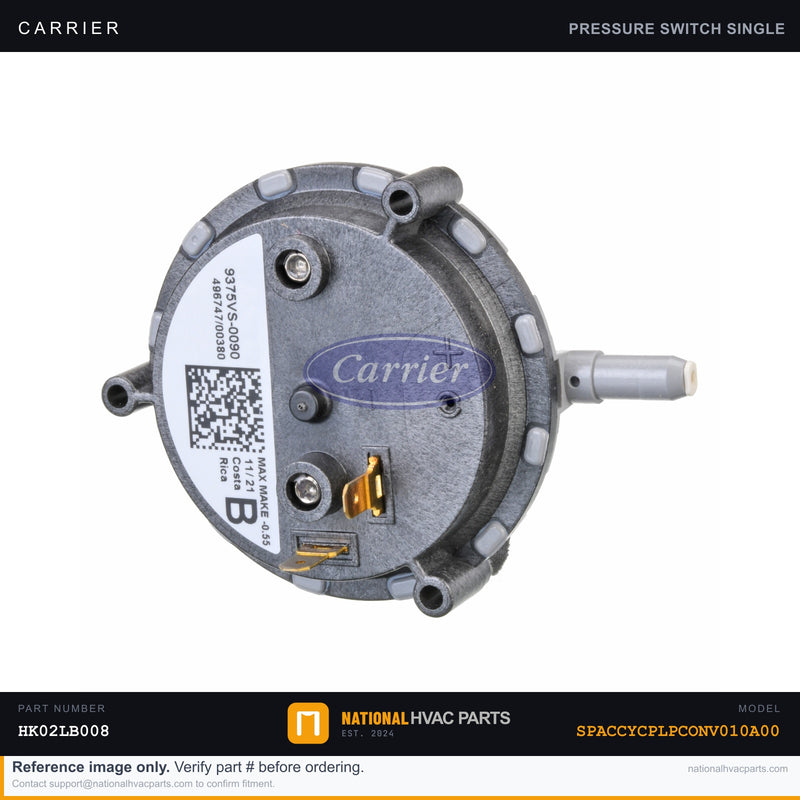

OEM Carrier Pressure Switch for SPACCYCPLPCONV010A00

This Carrier pressure switch verifies that the draft inducer has established adequate venting before the furnace control board allows the gas valve to open and the burners to ignite. It monitors negative pressure via a sensing tube on the inducer assembly, and its diaphragm closes only when draft is proven. A failing switch produces a clear homeowner-visible fault: the inducer runs, you hear it spinning, but the furnace never lights and eventually locks out with no heat — or it short-cycles, firing briefly then dropping out as the worn diaphragm flutters around its setpoint. This is a single normally-open diaphragm switch calibrated to a precise negative-pressure trip point in inches of water column ("W.C.) printed on the body, engineered for the inducer airflow and flue resistance of this furnace model. It switches the low-voltage 24V proving circuit. OEM matters for pressure switches because calibration is everything. A generic switch with a looser or incorrect "W.C. setpoint will either lock the furnace out unnecessarily in cold, high-draft conditions or allow ignition under inadequate draft — risking incomplete combustion and CO. Genuine Carrier switches retain their factory trip tolerance, correct port geometry, and a durable diaphragm that doesn't drift after repeated heating cycles. Install difficulty: 2 of 5. Tools: 1/4" nut driver and a multimeter to confirm continuity opens and closes correctly. #1 safety warning: turn off the gas supply and the breaker before servicing this combustion-safety part, and never jumper the switch closed to test for heat. Check that the sensing tube is free of condensate and cracks. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model SPACCYCPLPCONV010A00. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.
