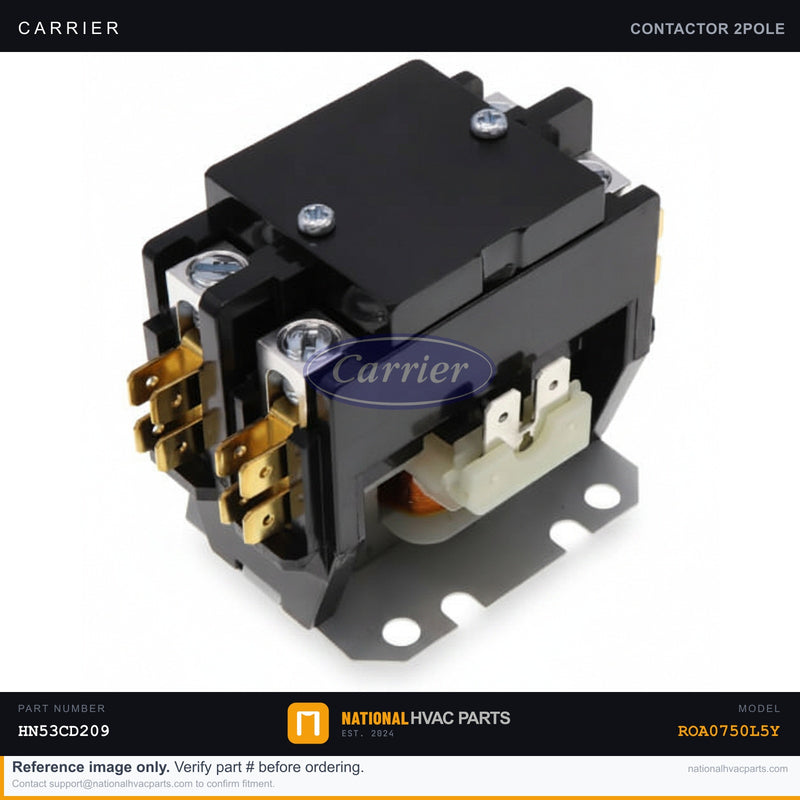

OEM Carrier Definite Purpose Contactor Relay for ROA0750L5Y Unit

The contactor is the electromechanical switch that connects line voltage to the compressor and outdoor fan motor in your Carrier ROA0750L5Y condensing unit. On each cooling call, the thermostat's 24-volt output energizes the coil, the contacts close, and the outdoor section starts. Because it engages every run, the contactor is one of the most wear-prone parts in the system. When it goes bad you'll hear a heavy buzzing or chattering at the condenser, find the outdoor unit dead while the indoor fan runs, experience short-cycling, or discover contacts welded shut so the unit never shuts off. Pitted, scorched, or insect-fouled contacts are the usual reason a healthy system suddenly stops cooling. This definite-purpose contactor is built to the OEM rating for the ROA0750L5Y. Before installing, match the pole configuration (single- vs. double-pole), full-load amp rating (commonly 30A or 40A on residential condensers), and coil voltage (24VAC standard; some units use 120V or 240V coils) to your old part. The silver-cadmium-oxide contacts are rated for hundreds of thousands of make-break cycles. Why OEM? Contact metallurgy and spring tension determine durability. Generic contactors often use thinner contact material and weaker return springs that arc and pit early; the added resistance turns into heat that can melt the base and burn the connected wiring. A weak generic coil chatters under low control voltage, hammering both the contacts and your compressor's start windings. The right OEM part protects the most expensive component in the unit. Install difficulty: 2 of 5. Tools: 1/4" and 5/16" nut drivers, a flat-blade screwdriver, needle-nose pliers, and a multimeter to confirm coil resistance and open contacts at rest. SAFETY: kill power at the outdoor disconnect AND the breaker before handling — the line side carries 240V even when the thermostat is off. Photograph the wiring and move one wire at a time. Ships same business day from our stocked warehouse on orders before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model ROA0750L5Y. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.
