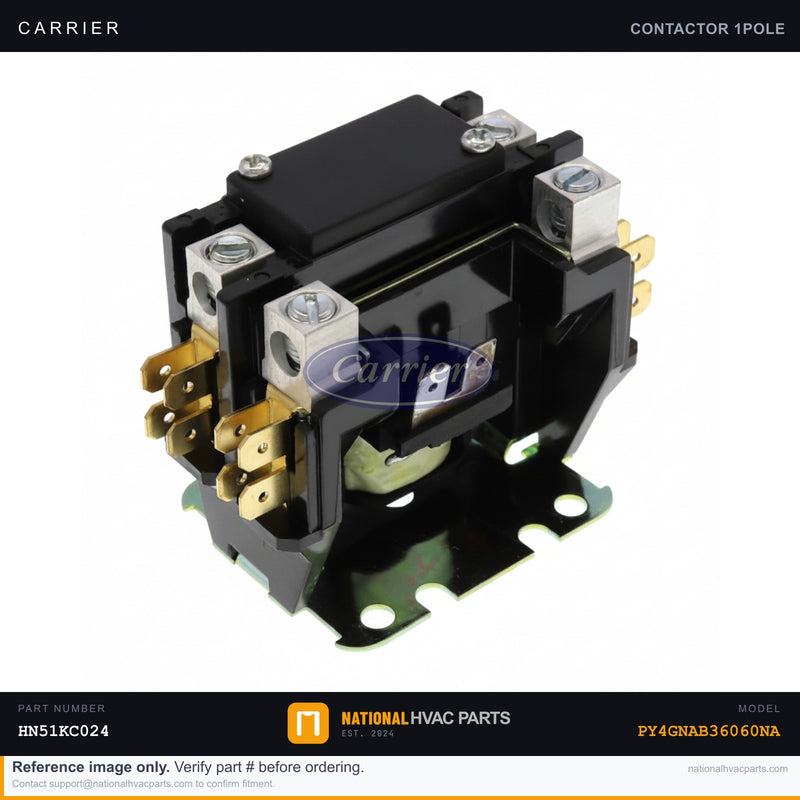

OEM Carrier Single-Pole Contactor 30A 24V Coil (HN51KC024) for Model PY4GNAB36060NA

This is the genuine OEM Carrier contactor (part number HN51KC024), the factory-specified high-voltage switching relay for the Carrier PY4GNAB36060NA packaged unit. The contactor acts as the main power switch for the compressor and/or condenser fan motor — energized by the 24V control circuit every time the thermostat calls for cooling. When the contactor fails, the most common symptom is an AC unit that receives a thermostat call but simply will not turn on; you may also experience welded or pitted contacts that keep the system running continuously even after the call ends, driving up energy costs and risking compressor damage.

• Specs: 1-Pole | 30A Full Load Amps (FLA) / 150A Locked Rotor Amps (LRA) | 24 VAC Coil | 50/60 Hz | Factory OEM part number HN51KC024
• OEM vs Generic: Genuine Carrier Factory Authorized Parts are engineered to exact Carrier specifications for proven reliability and proper contact gap tolerances. Generic contactors may use lower-grade contact alloys, leading to premature pitting, coil burnout, and shortened service life under high-cycle loads.
• Install difficulty: 2/5 — Shut off all power at the disconnect and breaker before beginning. Tools needed: flathead and Phillips screwdrivers, needle-nose pliers, multimeter. Photograph all wiring before removal. Discharge any residual voltage, transfer line, load, and 24V coil leads to the new contactor terminal-for-terminal, then verify pull-in with a live 24V thermostat call.
• Warranty: 1-year OEM factory warranty. Ships same business day from our warehouse — order by 3 PM local time for same-day dispatch.

Compatibility: Confirmed fit for Carrier model PY4GNAB36060NA packaged unit. Always verify the part number against your unit's wiring diagram or parts list before ordering. Our fitment team is available to confirm compatibility — reach out before you buy if you have any questions.
