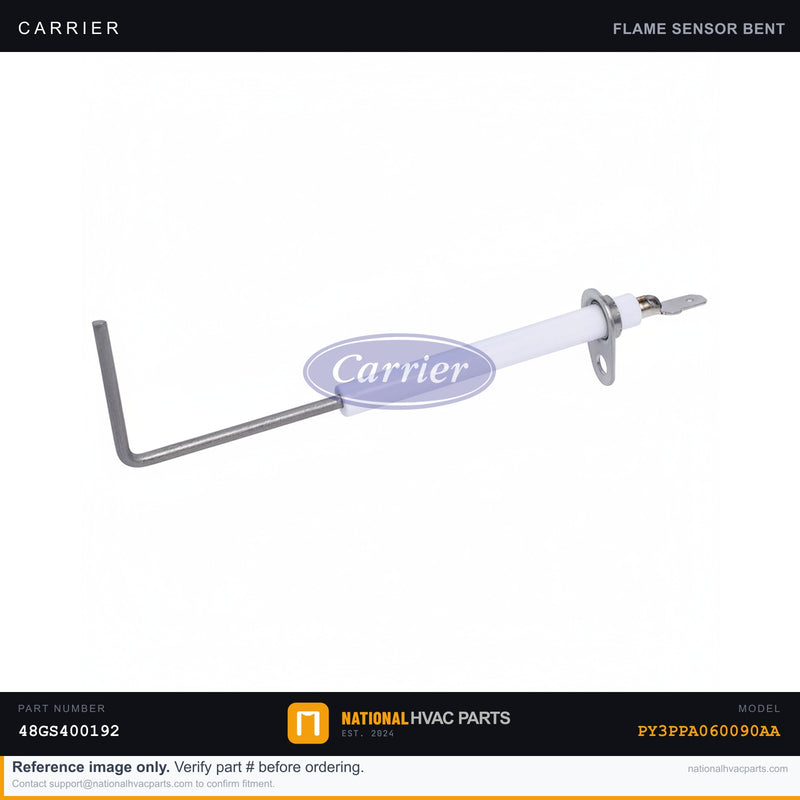

OEM Carrier Furnace Flame Sensor Replacement for PY3PPA060090AA

The flame sensor is a small but safety-critical part on your Carrier PY3PPA060090AA packaged unit. Once the burners ignite, the sensor's rod sits in the flame and uses flame rectification to send a tiny microamp signal back to the control board, confirming a real flame is present. If the board never sees that current, it shuts the gas valve within seconds to prevent unburned gas from accumulating. The signature failure is short-cycling on heat: the furnace lights, burns for about 3–7 seconds, shuts off, and repeats — often locking out after several attempts. Homeowners notice burners igniting then dying, lukewarm air at the vents, and recurring no-heat calls as the sensor rod gets coated with oxide. This OEM flame sensor uses a Kanthal-grade rod and a porcelain insulator rated for sustained flame-temperature exposure, generating a healthy 2–6 microamps of rectified current when clean (anything under roughly 0.5 µA means clean or replace). The bracket and spade terminal match your PY3PPA furnace so the rod seats at the correct depth in the flame. Sensing depth and rod alloy are critical. A generic sensor positioned even slightly off, or made from lower-grade alloy, produces a weak or drifting signal that trips the board's safety threshold and causes nuisance lockouts even when the flame is healthy. OEM holds the exact geometry and material the flame-proving circuit expects. Install difficulty: 1 of 5. Tools needed: 1/4" nut driver and fine emery cloth (never sandpaper). #1 safety warning: shut off the gas and the electrical disconnect before removing the sensor, and never bend the rod. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PY3PPA060090AA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.

Shipping & Returns

Same-day shipping on orders before 3 PM CST. Standard delivery 2-5 business days, express options available at checkout. 30-day hassle-free returns on uninstalled parts — free return shipping included. 1-year OEM factory warranty coverage.
