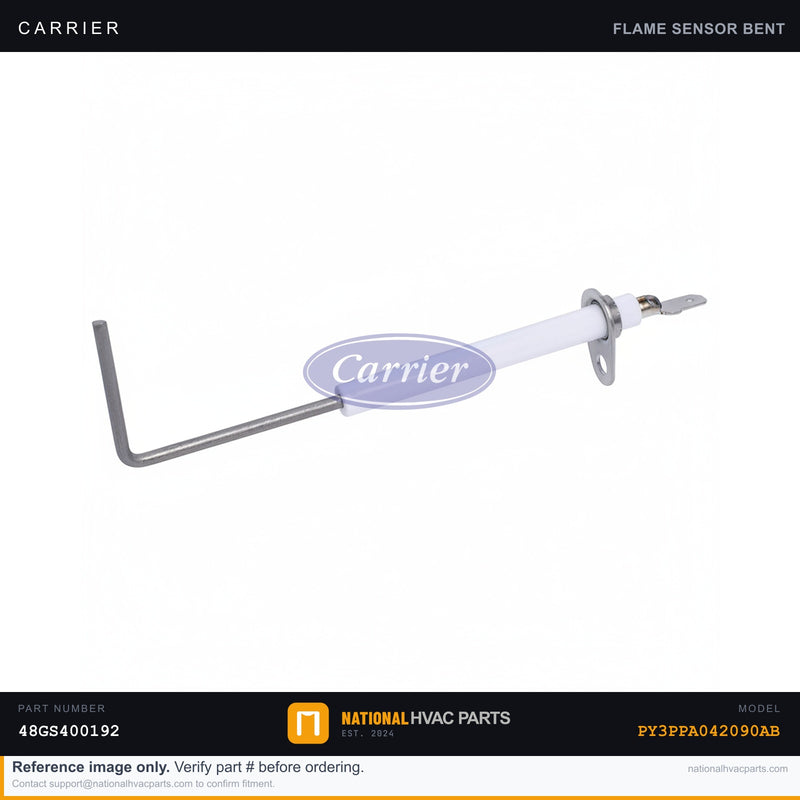

OEM Carrier Furnace Flame Sensor Rod Assembly for PY3PPA042090AB

The flame sensor on your Carrier PY3PPA042090AB is a slender metal rod that sits directly in the burner flame and confirms to the control board that the burners have actually lit. It works by flame rectification — a tiny microamp current passes through the flame to ground. When the rod becomes coated with oxidation or silica scale, that current drops and the board can no longer "see" the flame. The classic symptom is a furnace that lights for three to seven seconds and then shuts the gas off, repeating the cycle several times before locking out. Homeowners notice short bursts of warm air, repeated clicking and ignition attempts, and ultimately no heat on the coldest mornings. Specifications: This is a single-rod sensor built on a high-temperature ceramic insulator with a Kanthal-type sensing element rated for continuous flame exposure. A healthy sensor reads a flame current of roughly 1.5 to 6 microamps DC measured in series with a meter; anything under about 0.5 microamps will trip a flame-failure lockout. The mounting bracket and 1/4-inch quick-connect terminal match the original Carrier spacing so the rod seats at the correct depth in the flame. Why OEM: Generic flame rods often use thinner sensing wire and lower-grade insulators that drift out of tolerance and crack under thermal cycling, causing nuisance lockouts within a season. The OEM rod holds its position and current characteristics so the board reads a stable signal. Installation — Difficulty 2/5. Tools: 1/4-inch nut driver, fine emery cloth, multimeter. SAFETY: Turn off the gas and the furnace disconnect before removing the sensor; never service with the burners live. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PY3PPA042090AB. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.
