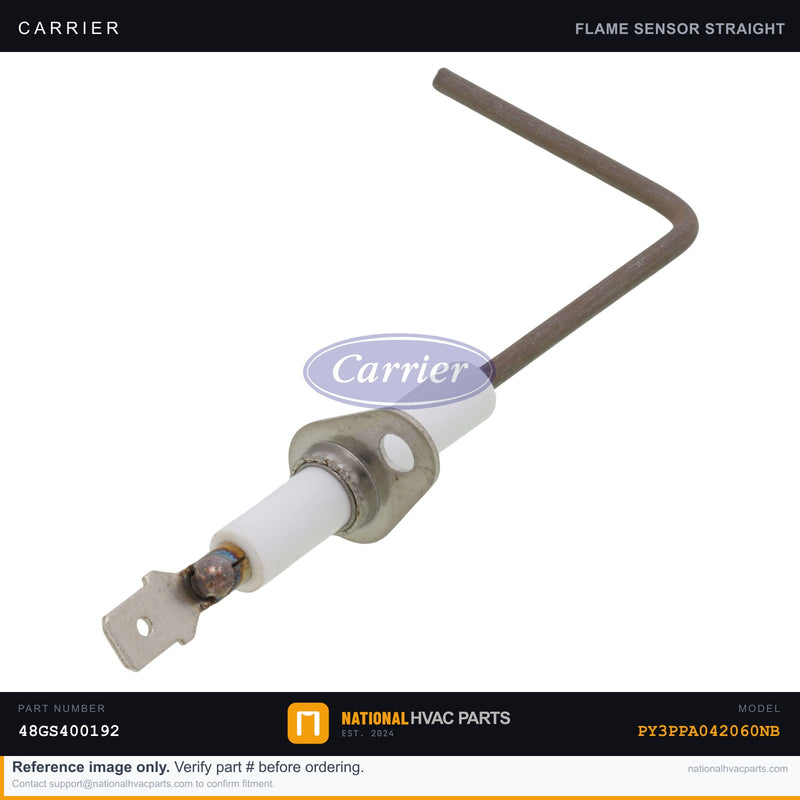

OEM Carrier Furnace Flame Sensor Rod for Model PY3PPA042060NB

The flame sensor is a single metal rod that sits in the burner flame and confirms the furnace actually ignited. It works by flame rectification — the lit flame conducts a tiny microamp current back to the control board, proving gas is burning safely. When the rod becomes coated with oxide or carbon, that signal drops and the board shuts the gas valve as a safety measure. The classic symptom is short-cycling: the furnace lights for 3–7 seconds, then shuts off, then tries again, often ending in a hard lockout with a flashing fault code. This is an OEM Carrier flame-sense rod with a matched sensing element and porcelain insulator, sized so the rod sits correctly in the flame envelope. A healthy sensor reads roughly 1–6 microamps of flame current with a meter set to microamp mode; below about 0.5 µA the board will drop out. The ceramic insulator must be intact — a hairline crack grounds the signal and mimics a dirty sensor. Rod length and insulator placement determine how much flame current the sensor actually sees. A generic rod that's slightly too short or mounted at the wrong depth sits at the edge of the flame and never builds a stable microamp signal, causing the very short-cycling you're trying to fix. OEM rods use the correct alloy and geometry for a strong, stable flame signal over years of service. Install difficulty: 1/5. Tools: 1/4" nut driver, fine emery cloth or steel wool for cleaning, and a multimeter (microamp). SAFETY: turn off the gas and kill the furnace breaker before removing the rod. Never sand a brand-new sensor — handle it by the porcelain base only. Ships same business day from our stocked U.S. warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PY3PPA042060NB. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.
