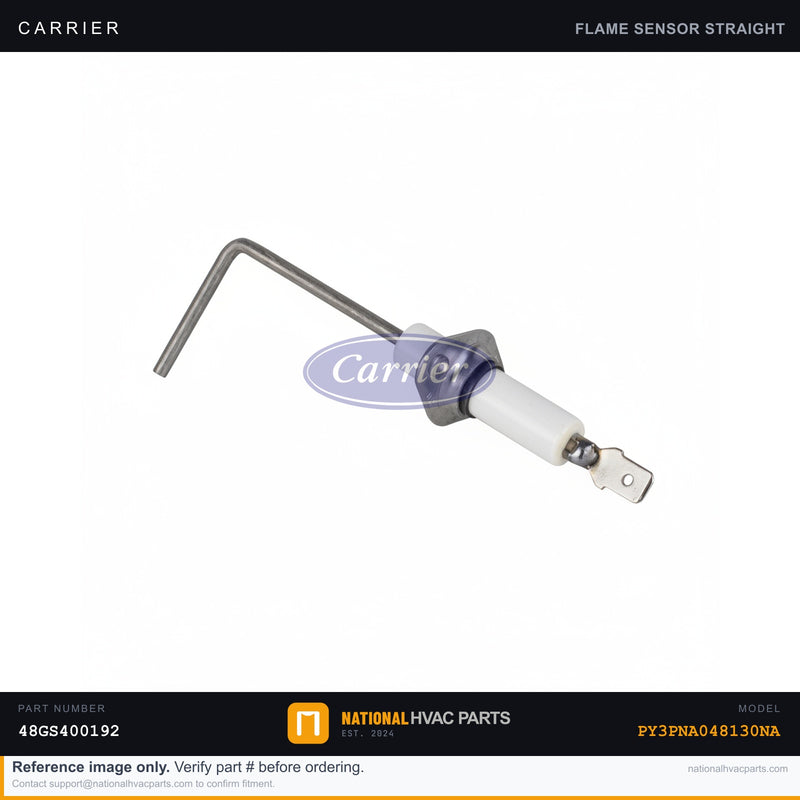

OEM Carrier Furnace Flame Sensor Rod Assembly for PY3PNA048130NA

The flame sensor is a single metal rod that sits in the burner flame and confirms to the control board that the burners actually lit. It works by flame rectification — a tiny microamp current passes through the flame to ground. On your Carrier PY3PNA048130NA, when the rod becomes coated with oxidation or carbon, that current drops and the board can no longer 'see' the flame, so it shuts the gas valve within seconds as a safety response. The classic symptom is a furnace that lights for 3–7 seconds, then shuts off and tries again — short-cycling that repeats several times before a hard lockout leaves you with no heat. This is a Kanthal/stainless sense rod with a ceramic insulator and a terminal matched to the PY3PNA burner assembly geometry, so the rod tip lands in the correct part of the flame envelope. A healthy sensor reads a flame current in the low single-digit microamps; below roughly 0.5–1.0 µA the board rejects the flame and locks out. OEM matters because rod length and bend angle determine how much flame the tip intercepts. A generic sensor that sits too shallow reads a weak signal even when clean, causing nuisance lockouts, and cheaper alloys oxidize faster, shortening service life. Install difficulty: 1 of 5 — one of the easiest furnace repairs. Tools: 1/4" nut driver and fine steel wool or emery cloth to clean the seat. #1 safety warning: turn off the gas and kill the furnace breaker before pulling the sensor from the burner box. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PY3PNA048130NA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.
