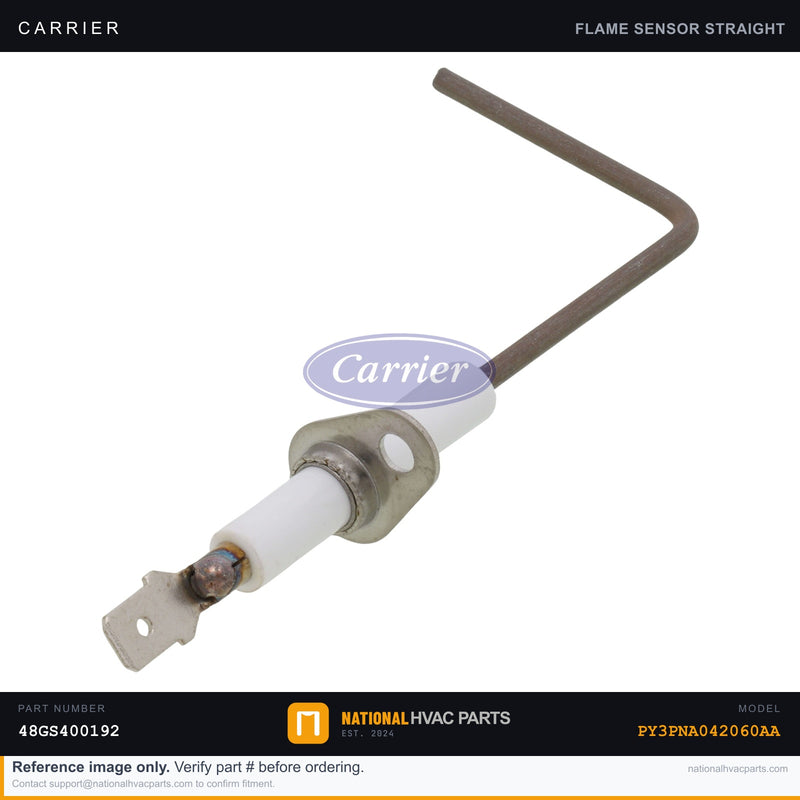

OEM Carrier Furnace Flame Sensor Rod for Model PY3PNA042060AA

The flame sensor in your Carrier PY3PNA042060AA is the safety device that proves a flame is actually present after ignition. It works by flame rectification — the lit burner conducts a tiny microamp current from the rod to ground, telling the control board it's safe to keep the gas valve open. When the rod oxidizes or cracks, that signal drops below threshold and the board reacts the way it's designed to: the furnace lights for a few seconds, then shuts the gas off and tries again. Homeowners notice short-cycling, warm air that quits almost immediately, and eventually a hard lockout with no heat after three or four failed tries. This OEM sensor uses the correct Kanthal sense rod length and bend geometry to sit precisely in the burner flame, with a porcelain insulator rated for repeated thermal cycling and the matching push-on terminal. A clean OEM rod typically reads 1.5–6 microamps of flame current — well above the board's lockout threshold. Generic flame sensors often use thinner rods, lower-grade insulators, and imprecise bends that position the tip outside the flame envelope. The result is a weak or erratic microamp signal that the board reads as flame failure — so the furnace nuisance-trips even though the burners are lit. For a part this cheap that controls a safety lockout, OEM fit is the difference between reliable heat and repeat service calls. Installation difficulty: 2 of 5. Tools: 1/4" nut driver, fine emery cloth or 000 steel wool to clean adjacent contacts, and a multimeter in microamp mode to verify flame current. #1 SAFETY WARNING: turn off the gas at the shutoff valve and kill the furnace breaker before removing the burner-area sensor. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PY3PNA042060AA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.
