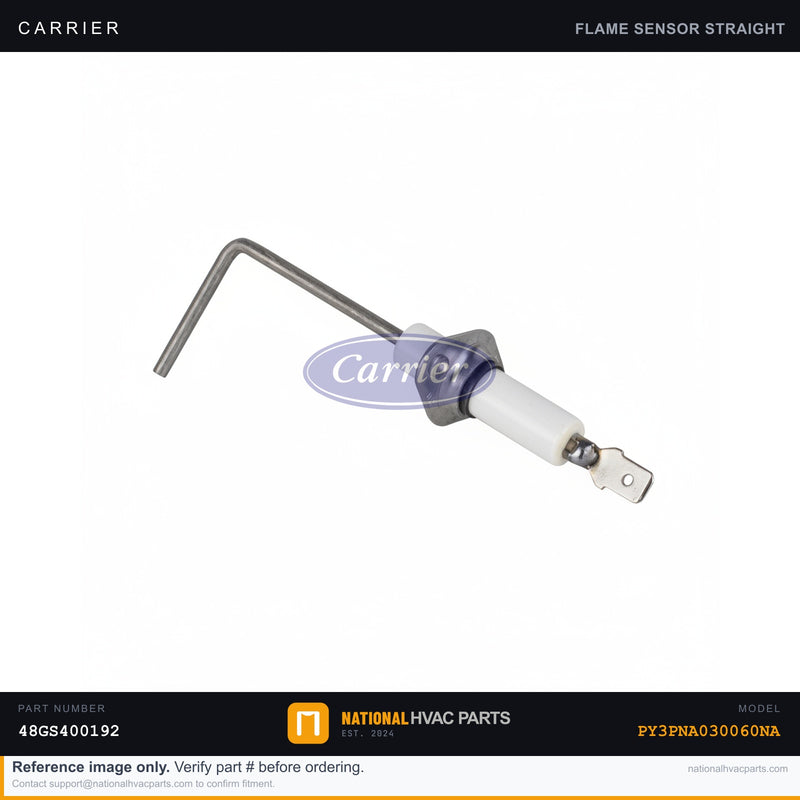

OEM Carrier Flame Sensor for PY3PNA030060NA Gas Furnace Unit

The flame sensor is a thin metal rod mounted in the burner assembly of your Carrier PY3PNA030060NA furnace. After ignition, it confirms the burners actually lit by generating a tiny microamp current through flame rectification, which the control board reads to keep the gas valve open. When the rod becomes coated with oxide or carbon, or the alloy degrades, the board can no longer "see" the flame and closes the gas valve within seconds as a safety response. Homeowners typically notice the furnace lighting and then shutting off after 3-7 seconds, repeated short-cycling, no sustained heat on cold mornings, and eventually a hard lockout after several failed trial-for-ignition attempts. This is a single-rod sensor built on a high-temperature Kanthal/stainless steel element with a porcelain insulator rated for direct flame exposure. A healthy unit produces roughly 1-6 microamps DC, with most boards needing a stable signal above 2 µA to hold the valve open. The rod length, bend, and spade terminal are matched to seat the tip correctly inside the flame envelope. Rod geometry is everything on this part. Generic aftermarket sensors with the wrong length or a thinner, lower-grade alloy sit at the edge of the flame or oxidize faster, dropping the microamp signal below threshold and triggering nuisance lockouts. The OEM sensor holds correct position and a flame-grade alloy, so the signal stays strong for years. Install difficulty: 2 of 5. Tools needed: 1/4" nut driver, fine emery cloth or steel wool, and a multimeter set to microamps. #1 safety warning: shut off the gas supply and kill power at the furnace disconnect switch before touching the burner assembly. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PY3PNA030060NA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.
