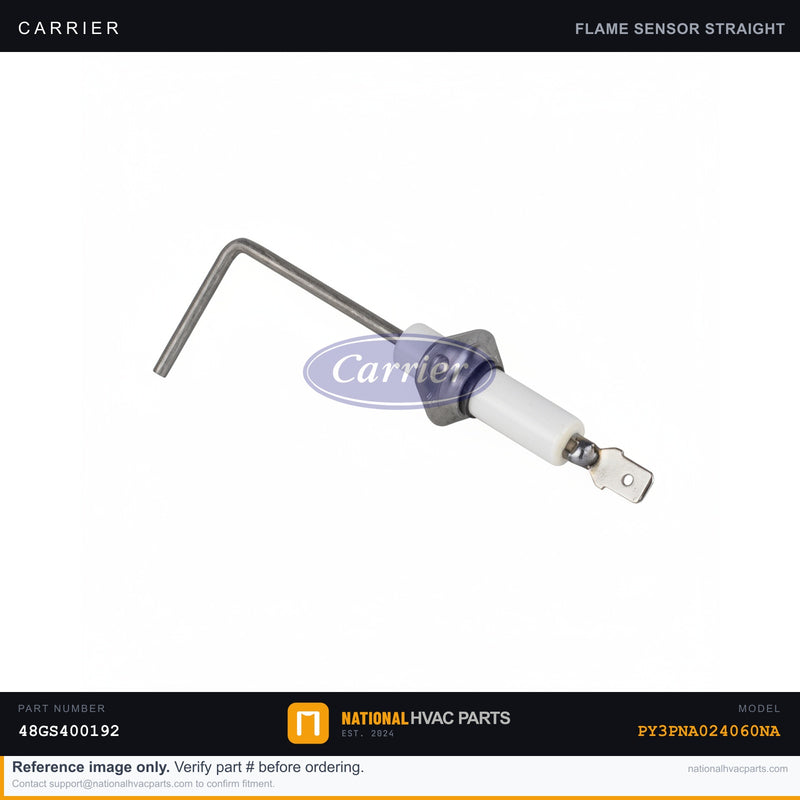

OEM Carrier Flame Sensor Replacement for PY3PNA024060NA Furnace

The flame sensor is a single-rod safety device that proves your burners have actually ignited. It sits directly in the burner flame and rectifies a tiny electrical current back to the control board; the instant that current drops, the board closes the gas valve within seconds. As the rod oxidizes with a carbon or white-scale film, the microamp signal falls and the furnace begins to misbehave: the burners light and then shut off after three to seven seconds, the unit short-cycles repeatedly, the blower runs warm-then-cold, or the control locks out after several failed tries. The classic homeowner complaint is no heat on the coldest mornings even though you can hear the unit trying to fire. Specs: this is a flame-rectification rod with a high-temperature porcelain insulator and a Kanthal/stainless probe rated for continuous flame immersion. A healthy sensor typically reads 2-6 microamps in series with a meter; anything under roughly 1 microamp means replacement. Correct rod length and bend angle keep the tip in the hottest part of the flame for a stable signal. Why OEM matters: a flame sensor's entire job is signal integrity. OEM rods use the correct alloy and porcelain so the microamp reading stays clean and oxidation-resistant. Generic rods often use thinner probes that scale over quickly and brittle porcelain that hairline-cracks, producing intermittent flame loss and nuisance lockouts that get misdiagnosed as a bad board. Wrong geometry parks the tip outside the flame and starves the signal. Install difficulty: 2 of 5. Tools: 1/4-inch nut driver, fine emery cloth or steel wool, and a microammeter/multimeter. #1 safety warning: shut off the gas supply and kill 120V power at the disconnect before reaching into the burner area. Note the orientation, remove the single mounting screw, and route the lead clear of the flame. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PY3PNA024060NA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.
