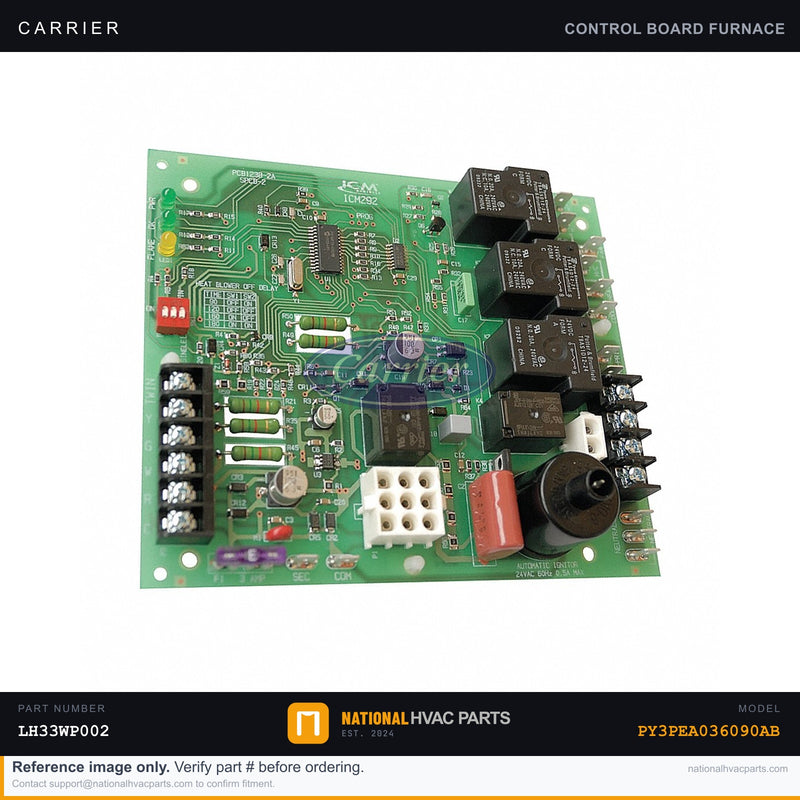

OEM Carrier Furnace Control Circuit Board for PY3PEA036090AB

The integrated furnace control board is the command center of your Carrier PY3PEA036090AB system, orchestrating each ignition sequence, watching the safety limit circuit, and routing line voltage to the inducer, hot-surface igniter, gas valve, and blower in the proper order. As it degrades you may see the furnace short-cycling, the blower running continuously or refusing to start, no heat on a thermostat call, or an onboard LED flashing a fault code. Cracked solder joints, a blown onboard fuse, and burnt relay contacts are the most common failure points, often set off by a power surge or a failing downstream component drawing too much current. This board carries the integrated ignition control, a 24 VAC control transformer circuit, and typically four to five onboard relays managing the inducer motor, igniter, and both heating and cooling blower speeds, along with a 3- or 5-amp blade fuse. It operates on 120 VAC line input with 24 VAC control output and signals faults through a diagnostic LED. Always confirm the full part number and connector pinout against your unit's data plate. A genuine Carrier board ships with the precise ignition timing, flame-proving windows, and blower-delay logic your furnace was designed around. Aftermarket universal boards substitute generic timing maps and weaker relays that pit and weld under your furnace's true amp load, producing stuck blowers and repeat lockouts — and incorrect timing can leave the gas valve energized a beat too long before flame is proven. Installation difficulty: 3 of 5. Tools: 1/4" nut driver, Phillips screwdriver, needle-nose pliers, and a phone photo of the existing wiring. SAFETY: shut off the furnace breaker at the panel before handling the board — line voltage remains present with the thermostat off. Transfer wires one at a time to prevent a mis-landed connector. Ships same business day from our stocked warehouse on orders before 3 PM CST. Covered by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PY3PEA036090AB. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.

Shipping & Returns

Same-day shipping on orders before 3 PM CST. Standard delivery 2-5 business days, express options available at checkout. 30-day hassle-free returns on uninstalled parts — free return shipping included. 1-year OEM factory warranty coverage.
