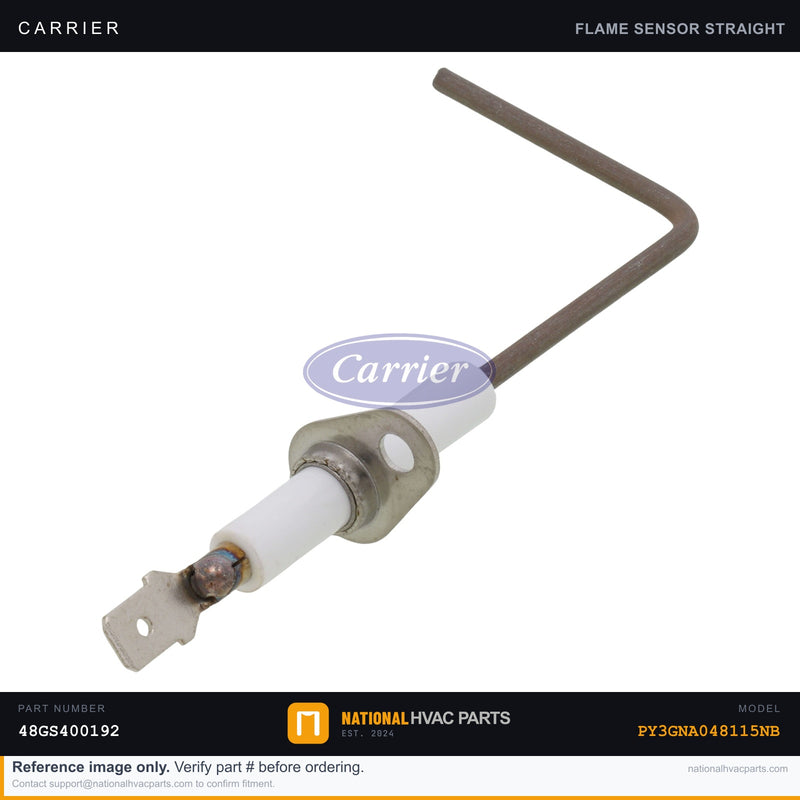

OEM Carrier Furnace Flame Sensor Rod Replacement for PY3GNA048115NB

The flame sensor is the safety device that tells your Carrier PY3GNA048115NB furnace whether the burners actually lit. It's a single metal rod placed in the burner flame; once gas ignites, the flame conducts a tiny microamp current to ground, which the control board reads to confirm a real flame before keeping the gas valve open. As the rod oxidizes and builds a silica or carbon coating, that current weakens. The classic symptom is short-cycling: the furnace lights, runs 3–7 seconds, then shuts off and tries again — sometimes locking out after three or four attempts and leaving you with no heat. This is an OEM flame sense rod with the Carrier ceramic insulator, factory bracket, and quarter-inch spade terminal. A healthy circuit reads roughly 1–6 microamps of DC flame current on a meter; anything below about 0.5 µA will trip the board's flame-proving threshold. The rod position relative to the burner is set by the factory bracket, which matters for a stable, reliable signal. OEM matters because generic sensors often use thinner rod material that oxidizes faster, and mismatched insulators can allow leakage current that the board misreads. A genuine Carrier rod holds the correct geometry and metallurgy for a stable microamp signal over years of cycling. Install difficulty: 1 of 5. Tools: 1/4" nut driver and, ideally, a multimeter to verify flame current. SAFETY: shut off the gas supply and the furnace breaker before servicing the burner assembly. Do not sand a new sensor — install it clean and dry. Ships same business day from our stocked warehouse on orders before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PY3GNA048115NB. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.
