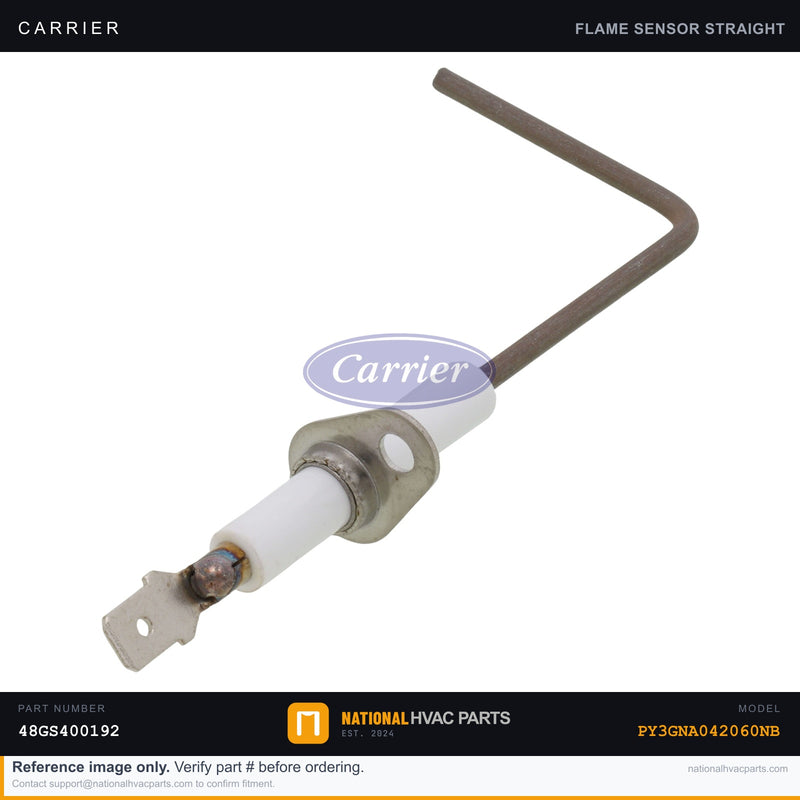

OEM Carrier Furnace Flame Sensor Rod for PY3GNA042060NB Models

The flame sensor in your Carrier PY3GNA042060NB furnace is a slender metal rod positioned in the path of the burner flame to prove ignition to the control board. Through flame rectification, the rod conducts a small microamp current once the burners light; if that current is absent or too weak, the board immediately closes the gas valve to prevent unburned gas from accumulating. As the rod accumulates oxidation or burner residue, the signal drops and the furnace begins to misbehave. The classic symptom is a burner that ignites for a few seconds and then snaps off, short-cycling repeatedly, delivering lukewarm or cold air, and tripping a flame-loss lockout after several failed attempts. This sensing element uses a high-temperature alloy rod and a porcelain insulator engineered for sustained direct-flame exposure. A properly functioning sensor produces about 1.5 to 6 microamps (µA) of DC flame current; readings under roughly 0.5 µA fall below the board's threshold and trigger lockout. The bracket and quick-connect terminal duplicate the factory Carrier dimensions for a drop-in fit. Because rectification relies on precise rod alloy and surface area, generic sensors with thinner or off-spec rods oxidize quickly and deliver a borderline signal, producing intermittent no-heat calls within months. The genuine Carrier rod maintains the correct material and geometry so the board reads a consistent, in-tolerance current for the long term. Install difficulty: 2 of 5. Tools needed: a 1/4" nut driver and a multimeter set to DC microamps to confirm flame current after the swap. SAFETY: shut off the gas supply and cut power at the furnace disconnect before removing the old rod, and avoid touching the sensing tip with bare hands. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PY3GNA042060NB. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.

Shipping & Returns

Same-day shipping on orders before 3 PM CST. Standard delivery 2-5 business days, express options available at checkout. 30-day hassle-free returns on uninstalled parts — free return shipping included. 1-year OEM factory warranty coverage.
