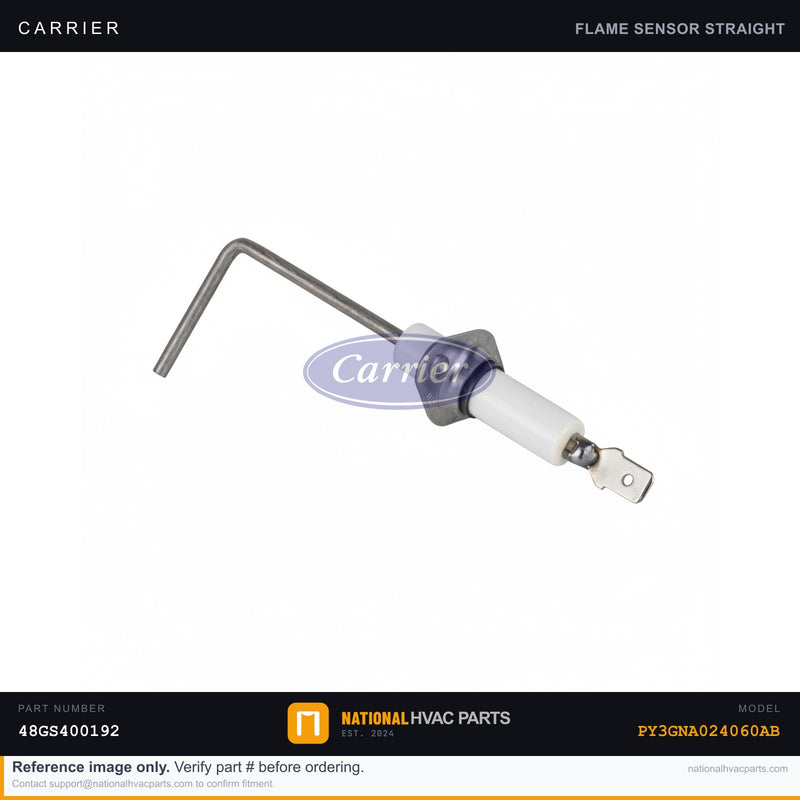

OEM Carrier Flame Sensor Replacement for PY3GNA024060AB Furnace

The flame sensor is a single stainless-steel rod that sits directly in the burner flame and confirms ignition has actually occurred. It works by flame rectification: a tiny DC current passes from the rod, through the conductive flame, to the burner ground, telling the control board that a flame is present. When the rod becomes coated with carbon and silica oxide, or hairline-cracks at the ceramic base, that microamp signal collapses and the board closes the gas valve within seconds as a safety lockout. Homeowners typically notice the furnace igniting for a few seconds and then shutting off (short-cycling), the blower running with cold air, repeated clicking ignition attempts, and finally a hard lockout after three or four failed tries — almost always on the coldest mornings. This OEM sensor uses the correct rod alloy, length, and bend so the flame fully envelops the tip. Healthy operation reads roughly 1–6 µA DC on a multimeter set to microamps; anything under ~0.5 µA causes dropout. The ceramic insulator is rated for direct flame-zone heat without tracking to ground. Why OEM matters here: generic rods are frequently the wrong length or angle, so only part of the rod touches the flame and the signal stays marginal — producing nuisance lockouts even when the part is brand new. Cheaper ceramics also crack and leak current to ground prematurely. Install difficulty: 2 of 5. Tools: 1/4" nut driver, fine emery cloth or 0000 steel wool, and a multimeter capable of reading DC microamps. #1 safety warning: shut off the gas supply and kill power at the breaker before removing the burner-area sensor. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PY3GNA024060AB. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.

Shipping & Returns

Same-day shipping on orders before 3 PM CST. Standard delivery 2-5 business days, express options available at checkout. 30-day hassle-free returns on uninstalled parts — free return shipping included. 1-year OEM factory warranty coverage.
