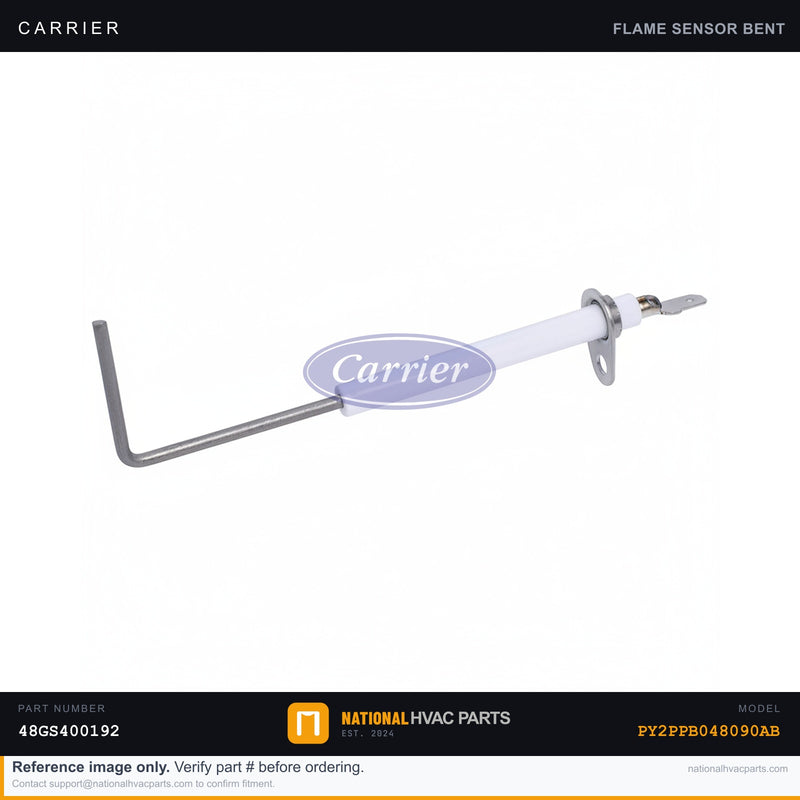

OEM Carrier Flame Sensor Replacement for PY2PPB048090AB Furnace

The flame sensor is the safety device that confirms your Carrier PY2PPB048090AB actually lit. After the igniter glows and the gas valve opens, the sensor rod sits in the flame and uses flame rectification to send a tiny microamp current back to the control board, proving combustion. When the rod oxidizes or cracks, the board can't 'see' the flame and shuts the gas off within seconds as a safety—so the classic symptom is a furnace that lights for 3–7 seconds, then shuts down and tries again, short-cycling repeatedly and leaving you with little or no heat. Specs: This OEM flame sensor uses a Kanthal/stainless-steel rod sized and bent to sit correctly in the PY2PPB048090AB's burner flame, with the matching ceramic insulator and ferrule. A healthy sensor should read a flame-rectification signal in the 1–6 microamp (µA) DC range measured in series; a clean OEM rod with the correct geometry and insulation resistance maintains that microamp signal reliably. Why OEM matters: Flame-sense is microamp-sensitive. Aftermarket sensors with the wrong rod alloy, length, or insulator resistance produce a weaker or noisier flame signal, causing intermittent lockouts that are maddening to diagnose. Wrong rod positioning keeps it out of the flame envelope entirely. An OEM sensor restores the exact rod geometry and insulation the board expects. Install difficulty: 1 of 5. Tools: 1/4" nut driver and fine steel wool or emery cloth (never sandpaper on the new rod). SAFETY: Turn off the gas supply and kill the furnace breaker before removing the sensor near the burner assembly. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PY2PPB048090AB. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.

Shipping & Returns

Same-day shipping on orders before 3 PM CST. Standard delivery 2-5 business days, express options available at checkout. 30-day hassle-free returns on uninstalled parts — free return shipping included. 1-year OEM factory warranty coverage.
