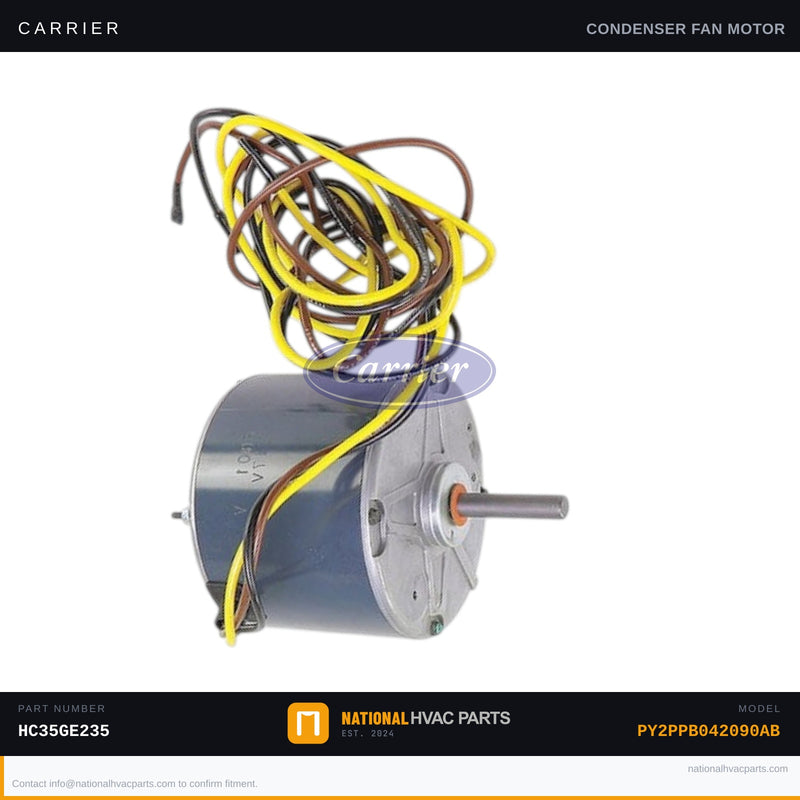

OEM Carrier Condenser Fan Motor HC35GE235 — 1/8 HP 825 RPM 208-230V for Model PY2PPB042090AB

This is the genuine OEM replacement condenser fan motor for the Carrier PY2PPB042090AB packaged unit. The condenser fan motor drives the outdoor fan blade to expel heat from the refrigerant through the condenser coil. When this motor fails, the system loses its ability to reject heat — resulting in high-pressure lockouts, rapid short-cycling, or a complete no-cool condition. A failed motor often presents with the compressor running but no outdoor fan movement, or the unit tripping the high-pressure safety within minutes of startup.

• Specs: 1/8 HP | 825 RPM | 208-230 VAC | 60 Hz | Single Phase | 0.90 Full Load Amps | PSC (Permanent Split Capacitor) Motor Type | Clockwise Rotation | Shaft Down Mount | Replaces GE Genteq 5KCP39FFS244CS and HC35GE235A
• OEM vs Generic: This is the factory-authorized OEM part built to exact Carrier specifications — including correct winding insulation class, shaft diameter, and rotation direction. Generic motors often deviate in RPM tolerance and bearing grade, leading to premature failure and potential compressor damage from inadequate heat rejection.
• Install difficulty: 3/5 — Requires safely disconnecting power and recovering refrigerant access is not needed for motor replacement. Tools needed: 1/4" and 5/16" nut drivers, wire stripper, multimeter, and needle-nose pliers. Always photograph existing wiring before disconnecting. Replace the run capacitor at the same time — motor failure commonly stresses capacitors beyond rated tolerance.
• Warranty: 1-year OEM factory warranty. Orders placed before 3PM ship same business day from our climate-controlled warehouse.

Compatibility: Designed for the Carrier PY2PPB042090AB packaged unit. Verify your unit's data plate voltage (208-230V), horsepower (1/8 HP), and RPM (825) before ordering to confirm fitment. Cross-references: HC35GE235A, GE Genteq 5KCP39FFS244CS. Questions about fitment? Our HVAC parts team verifies compatibility before you order — call or chat today. In stock — ships today.
