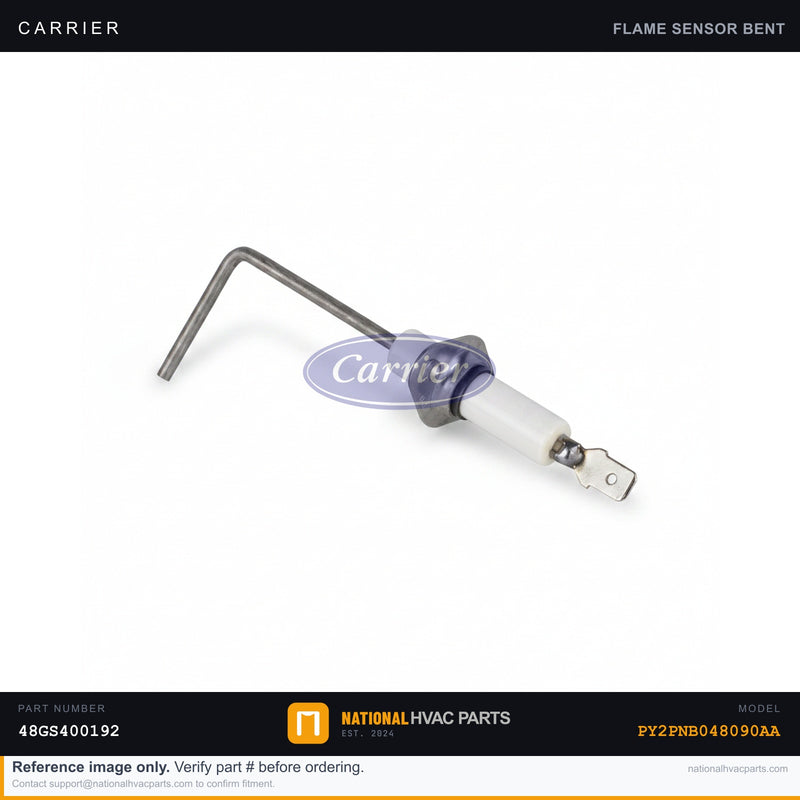

OEM Carrier Flame Sensor Replacement for PY2PNB048090AA Furnace

The flame sensor is the safety device that proves your Carrier PY2PNB048090AA furnace has actually established a flame after the igniter fires. It works by flame rectification — the burner flame conducts a tiny electrical current from the metal rod to ground, and the control board uses that signal to keep the gas valve open. When the rod becomes coated with white silica or carbon buildup, or the ceramic insulator cracks, that microamp signal drops out. You'll notice the burners light for two or three seconds and then snuff out, the furnace cycling on and off repeatedly (short-cycling), several failed ignition attempts in a row, and finally a hard lockout with no heat on the coldest mornings. This is a single-rod flame-rectification sensor with a high-temperature stainless/Kanthal probe and a porcelain insulator rated for direct burner-flame exposure. A healthy sensor reads a steady flame current in the 2–6 microamp range on a meter set to DC microamps; anything under roughly 1 µA causes dropout. OEM matters here because rod length and probe geometry position the tip correctly inside the flame envelope. Generic rods are often the wrong length or bend, so they sit at the edge of the flame and produce a weak, unstable signal that triggers nuisance lockouts even when the furnace is otherwise healthy. Install difficulty: 2 of 5. Tools: 1/4" nut driver, fine emery cloth or steel wool, and a multimeter that reads DC microamps. Safety first: shut off the gas at the valve and kill power at the furnace disconnect switch before reaching into the burner compartment. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PY2PNB048090AA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.

Shipping & Returns

Same-day shipping on orders before 3 PM CST. Standard delivery 2-5 business days, express options available at checkout. 30-day hassle-free returns on uninstalled parts — free return shipping included. 1-year OEM factory warranty coverage.
