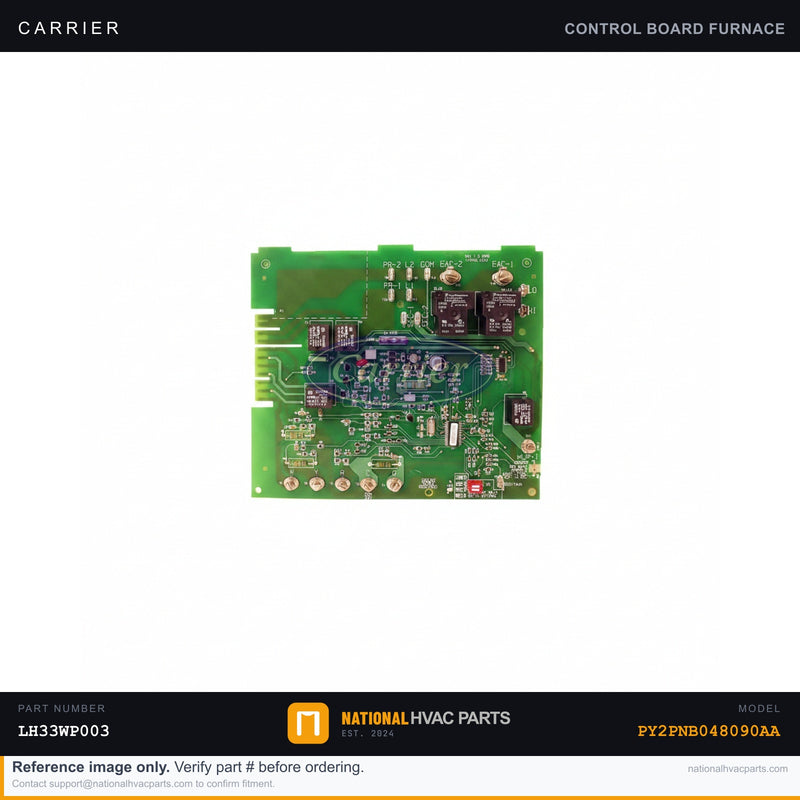

OEM Carrier Furnace Control Circuit Board for PY2PNB048090AA

The integrated furnace control board is the brain of your Carrier PY2PNB048090AA. It sequences ignition, energizes the inducer and blower motors, monitors the flame sensor and limit switches, and manages safety lockouts. When this board fails you'll see clear symptoms: the furnace won't fire, the blower runs nonstop or never engages, the diagnostic LED is dark or stuck on a fault code, the system short-cycles, or it locks out after repeated failed ignition attempts. Scorch marks near a relay or a burnt-electronics smell mean the board has failed for good. This OEM board is built for the PY2PNB048090AA revision with the correct relay complement — dual line-voltage relays for inducer and blower plus low-voltage gas-valve and ignition control — and the exact factory firmware, timing, and connector pinout. Control voltage is 24VAC with 120VAC switched outputs, and the onboard LED reports Carrier's flash-code fault sequence. Confirm the AA suffix on your old board, as the AA and AB revisions can differ in timing maps. Generic boards substitute lower-rated relays and remap connectors, forcing splices and risking mis-sequenced ignition. That leads to nuisance lockouts, accelerated relay pitting, and possible gas-valve backfeed. The OEM board keeps factory safety logic and timing exactly as engineered. Install difficulty: 3 of 5. Tools needed: 1/4" nut driver, Phillips screwdriver, needle-nose pliers, and a multimeter to verify 24VAC at the transformer secondary. #1 safety warning: shut off power at the breaker before touching the board — line voltage is present even with the thermostat off. Photograph each connector before removing it. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PY2PNB048090AA. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.

Shipping & Returns

Same-day shipping on orders before 3 PM CST. Standard delivery 2-5 business days, express options available at checkout. 30-day hassle-free returns on uninstalled parts — free return shipping included. 1-year OEM factory warranty coverage.
