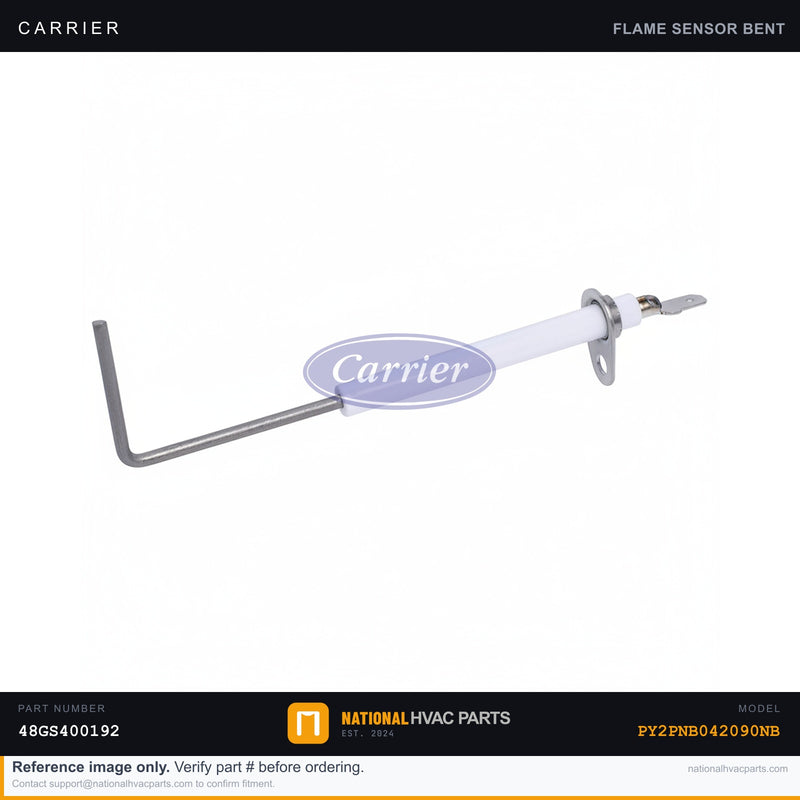

OEM Carrier Flame Sensor Replacement for PY2PNB042090NB Furnace

The flame sensor confirms that your Carrier PY2PNB042090NB furnace has lit a real flame after the igniter glows. Using flame rectification, the burner flame passes a tiny current from the sensing rod to ground, and the control board relies on that signal to hold the gas valve open. Over time the rod develops a white silica or carbon coating, or the ceramic insulator cracks, and the microamp signal collapses. The classic symptoms are burners that ignite for a couple of seconds then go out, the furnace short-cycling on and off, repeated failed ignition attempts, and eventually a hard lockout that leaves you with no heat. This is a single-rod flame-rectification sensor built with a high-temperature stainless/Kanthal probe and a porcelain insulator rated to sit directly in the burner flame. A healthy sensor produces a stable 2–6 microamp flame current on a meter set to DC microamps; readings below roughly 1 µA cause dropout and lockout. OEM matters because the rod's exact length and bend place the tip in the hottest part of the flame. Aftermarket rods are frequently the wrong geometry, so they read low and trigger nuisance lockouts even on a furnace that is otherwise burning cleanly. Install difficulty: 2 of 5. Tools: 1/4" nut driver, fine emery cloth or steel wool to clean the rod, and a multimeter that reads DC microamps. Safety first: shut off the gas at the valve and kill power at the furnace disconnect switch before reaching into the burner area. Ships same business day from our stocked warehouse on orders placed before 3 PM CST. Backed by a 1-year OEM warranty and 30-day hassle-free returns on uninstalled parts.

Compatibility

This part is compatible with Carrier model PY2PNB042090NB. Always verify the part number against your unit's data plate before ordering.

Why Choose OEM?

OEM parts are manufactured to the exact factory specifications for your unit. Generic aftermarket alternatives may fit physically but often use lower-rated components that reduce equipment life and void manufacturer warranties. When the cost difference between OEM and generic is $10-30, the OEM part is always the smarter investment on a system worth $5,000-$15,000.
